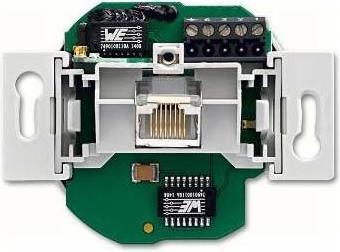

Busch-Jaeger WLAN access point

Busch-Jaeger WLAN Access Point 8186/31-101

Manufacturer: Busch-Jaeger
Designation: WLAN Access Point UP
Type: 8186/31-101
Max. Transmission Rate: 150 Mbit/s
Frequency Band: 2.4 GHz
Managed: Yes
Wireless Protocol: IEEE 802.11 b/g/n
Encryption: Other
Ethernet: Yes
Number of 10/100 Mbps LAN Ports: 2
Number of 1000 Mbps Mini GBIC Ports: 1
Firewall: No
Firewall Throughput: 0 Gbit/s
VPN Security: Yes
External Antenna Connection: No
Bridge Function: Yes
Repeater Function: Yes
Power over Ethernet: No
Color: Other
Width: 80 mm
Height: 80 mm
Depth: 50 mm
Protection Class (IP): IP20
Suitable for 482.6 mm (19 inch) Mounting: No
Ceiling Mounting: No
Built-in: No
Suitable for DIN Rail Mounting: No
Pole Mounting: No
Flush Mounting: Yes
Suitable for Wall Mounting: No
Number of Users: 5
Socket Adapter: No

Busch-Jaeger WLAN Access Point 8186/31-101: Additional Details
Operates as a WLAN Access Point for connecting WLAN devices to the LAN. Operates as a WLAN Repeater to extend the range of a WLAN. Operates as a WLAN Adapter to integrate Ethernet devices into a WLAN. Supports WLAN standards IEEE 802.11b/g/n at 2.4 GHz, with an integrated WLAN antenna. Rear connection of an Ethernet cable via screw terminals (10/100 Mbit/s). Front Ethernet connection via an RJ45 socket (10/100 Mbit/s). The three connections (WLAN, Ethernet/screw terminals, and Ethernet/RJ45) can be used in parallel through the integrated switch. Power supply via a 2-pole terminal block. Rated Voltage: 100 - 240 V~ Suitable for installation in standard deep flush and hollow wall boxes. Compatible with central plate 1803-xxx. Do not install in AP housing 1701-xxx, 1702-xxx, 1703-xxx. EAN: 4011395218716.
