Product details

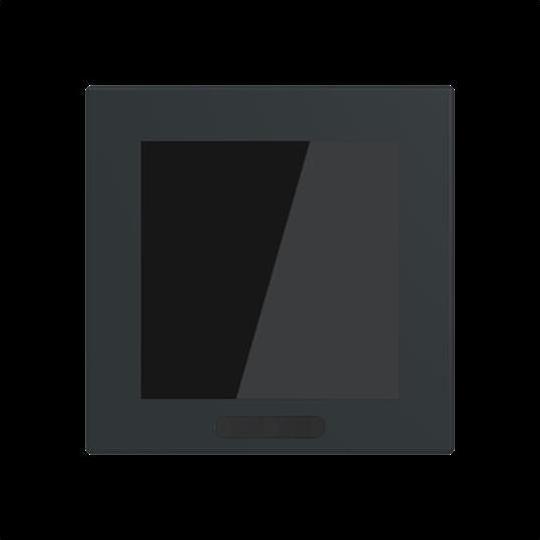

Busch-Trevion® Displays 2.4, in format 63 for switch programs such as axcent, Solo, future. Freely programmable touch panel with a 2.4-inch IPS screen with a resolution of 240 x 240, enabling control and monitoring of the free@home or KNX system. Control, observe, and manage your entire installation on one device: switching, dimming, sliders, blinds, RGBW controls, step switches, scene switches, display elements, audio controls. The display includes a brightness and proximity sensor. Operation is supported by haptic feedback. The display features an integrated temperature controller (RTC) with a built-in temperature sensor. An optional remote sensor for temperature measurement can be connected to the rear input. An additional 24VDC power supply is required for operation.
KNX: Up to 12 control pages with up to 12 control elements can be created. A maximum of 1 to 4 touch surfaces is possible per page. 10 scene actuators, 10 logic functions, 10 presence simulations, and time programs, as well as 18 fault and alarm messages. The primary function allows direct operation of a function when touching the display. The rear input can alternatively be used as a binary input instead of the remote sensor.
free@home: Up to 16 control functions can be created on up to 4 pages. A maximum of 4 touch surfaces is possible per page. The scene function, logic functions, presence simulation, and time programs are provided by the system access point in free@home and are not additionally required on the display. Fault and alarm messages are displayed as pop-ups. The rear input can be used to connect a remote sensor.
