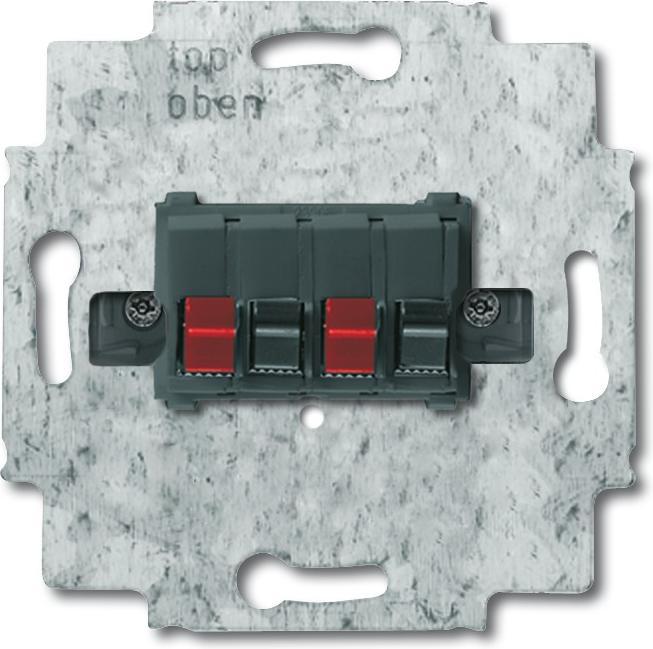

Busch-Jaeger Loudspeaker junction box

Busch-Jaeger Speaker Connection Box 0248/05-101

Manufacturer: Busch-Jaeger
Description: Dual speaker connection box, black
Type: 0248/05-101
Composition: Base element
Usage: Other
Mounting ring: Yes
With dust protection: No
With hinged lid: No
Outlet direction: Straight
Labeling field: Without labeling field
With print: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Matte
Color: Black
RAL number (similar): 9005
Transparent: No
Mounting type: Claw/screw mounting
Number of modules (in modular design): 1
With sockets/couplings: Yes
Suitable for number of sockets/couplings: 4
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20

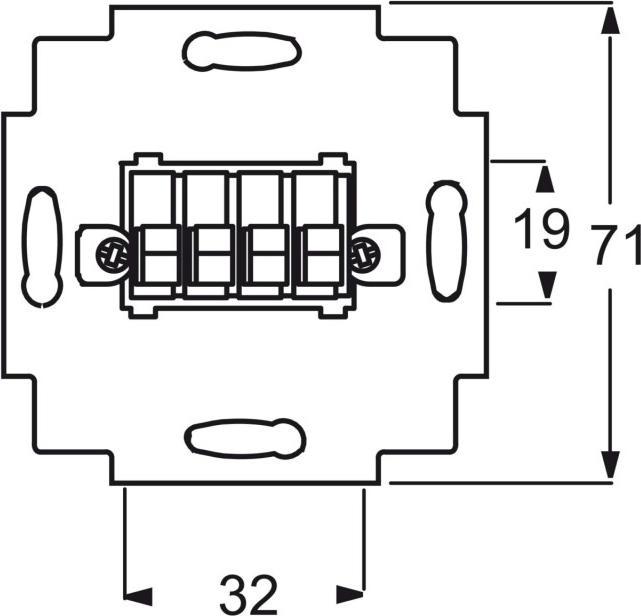

Device width: 71 mm
Device height: 71 mm
Device depth: 44 mm
Min. depth of the device box: 31 mm

Additional details:
Stereo speaker connection box
With push-in terminals on the front
With screw terminals on the back
With 4 connection terminals, maximum conductor cross-section 10 mm²
Polarity color-coded
With spreader
Compatible with cover TAE 1766-xxx and 2539-21x.
