Broadcom BCM MEGARAID 9540-8i SAS/SATA/NVMe

Ratings
Delivered between Tue, 27.5. and Wed, 28.5.
6 items in stock at third-party supplier
Supplied by

Product details

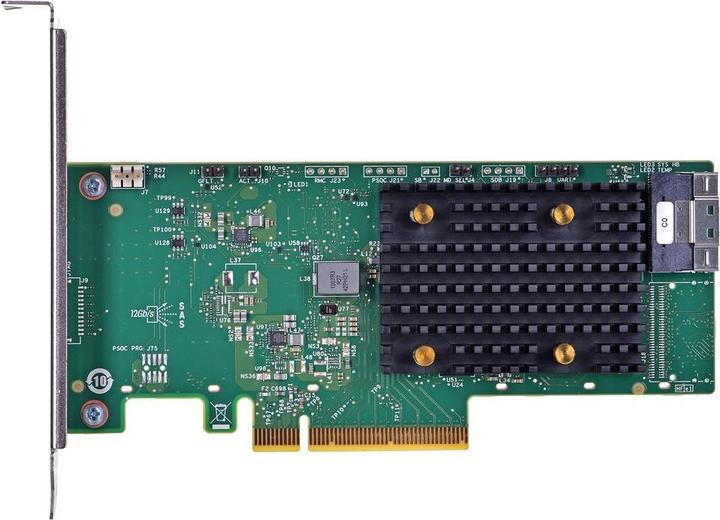

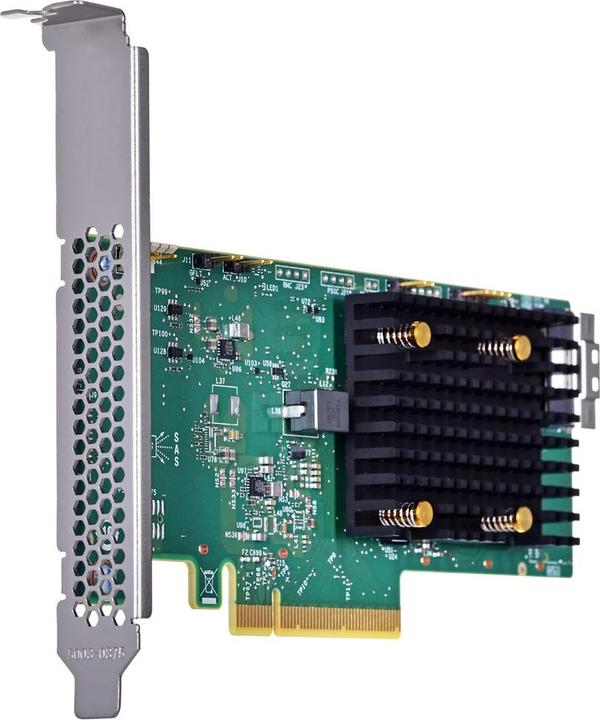

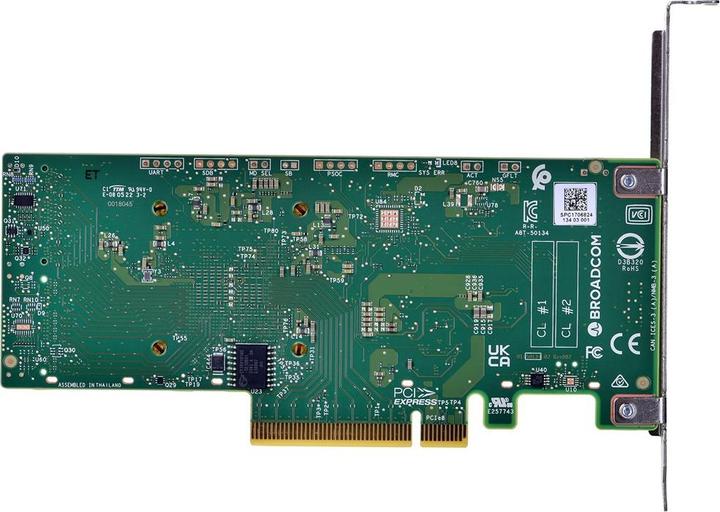

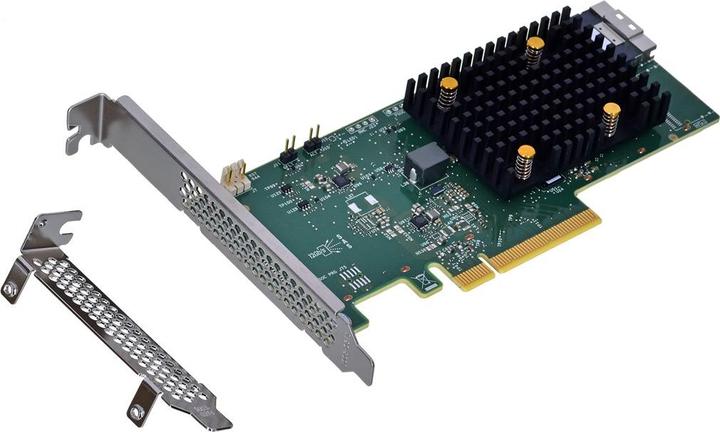

MegaRAID 9540-8i

Ensure data protection for performance-hungry applications with PCIe Gen 4.0 host and storage interfaces.

The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO controller, delivers double the performance of previous generations.

Small and medium-sized enterprises (SMEs) using entry-level server platforms and workstations require cost-effective, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12 Gb/s SAS/SATA/PCIe (NVMe) controller card that meets these needs by providing proven performance and RAID data protection for a range of critical applications.

The adapter's Tri-Mode SerDes technology seamlessly bridges speeds and protocols, enabling the operation of NVMe, SAS, or SATA devices in a single drive bay, thereby maximizing performance and flexibility from each drive protocol.

Key specifications

Internal connection options
mini-SAS (1x)
Expansion slot
PCI Express x8 (1x)
Number of connectable hard disks
32 x
RAID configuration
0, 1, 10, JBOD
Controller type
RAID controller
Item number
23982707

General information

Manufacturer
Broadcom
Category
Storage controller
Manufacturer no.
05-50134-03
Release date
30.8.2023

Controller properties

Controller type
RAID controller
Expansion card form factor
Low profile
Number of ports
1 Ports
Number of connectable hard disks
32 x
RAID configuration
0, 1, 10, JBOD

Internal interfaces

Expansion slot
PCI Express x8 (1x)
Internal connection options
mini-SAS (1x)

Scope of delivery

Scope of delivery
1 piece

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
155.65 mm
Width
30 mm
Weight
325 g

Package dimensions

Length
23.40 cm
Width
15 cm
Height
5.60 cm
Weight
257 g
