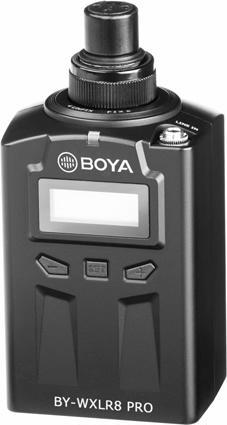

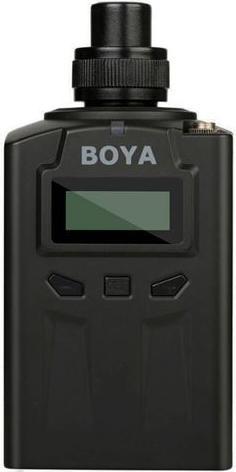

Boya Wireless XLR Transmitter BY-WXLR8 Pro for BY-WM8 Pro

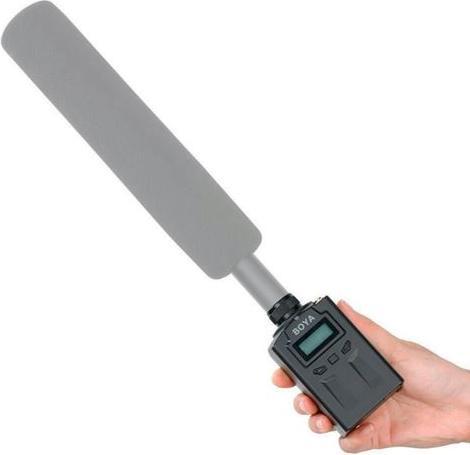

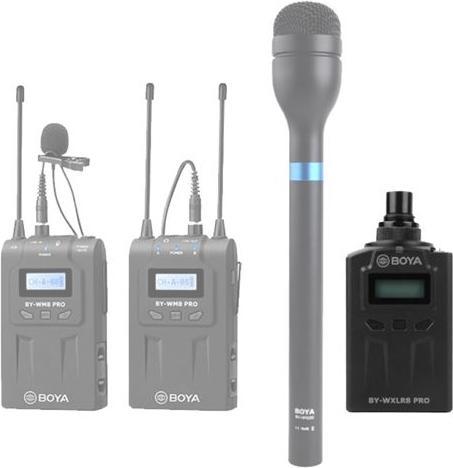

The Boya BY-WXLR8 Pro is an XLR wireless transmitter that can be used with the Boya BY-WM8 Pro wireless system. It is compatible with handheld or condenser microphones with XLR output, such as the BY-HM100. In addition to an XLR input, the transmitter also features a 3.5 mm line input, allowing you to connect an audio mixer, for example.

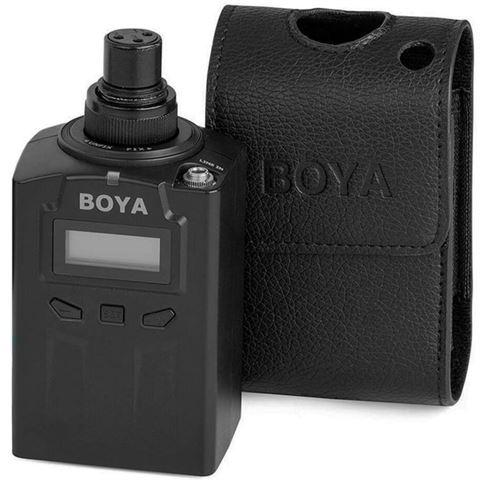

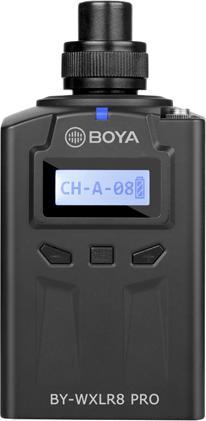

The BY-WXLR8 Pro has a clear LCD screen where you can easily set various parameters. You can adjust the volume, channel, and mode (stereo or mono). For channels, you can choose between channel group A or B and 48 channel numbers. To ensure safe and easy transport of the BY-WXLR8 Pro, a synthetic leather case is included, in which the transmitter can also be placed during use. The XLR transmitter uses two AA batteries (not included). The wireless frequencies are 556.71 MHz-575.98 MHz and 576.39 MHz-595.66 MHz.

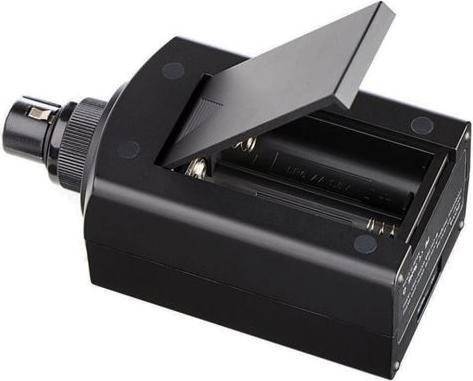

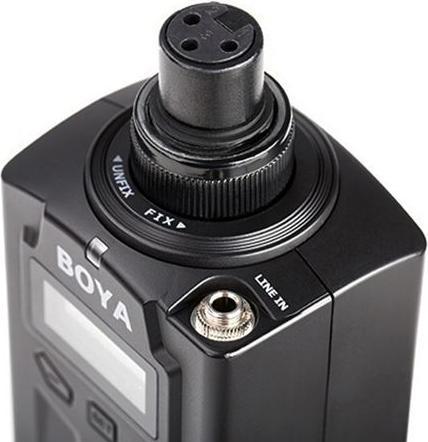

To use the transmitter, insert two AA batteries into the rear compartment. By turning the locking ring to the right, you can attach the microphone to the transmitter; turning the ring to the left will disconnect it. An optional receiver can be connected to your camera. You can then power on the device using the Power/Mute button at the bottom (long press to turn the transmitter on and off, short press to toggle the mute function). When the BY-WXLR8 Pro is powered on, the LED lights up blue if there is sufficient battery charge. If the battery is low, the LED lights up red. If the LED blinks red, you have activated the mute function.
