Block Transformer PCB 1.5VA 2x18V

Nominal secondary voltage: 18V AC
Nominal power: 1.5VA
Nominal primary voltage: 230V AC
Number of outputs: 2
Length: 32.3mm
Width: 23.8mm
Depth: 27.3mm

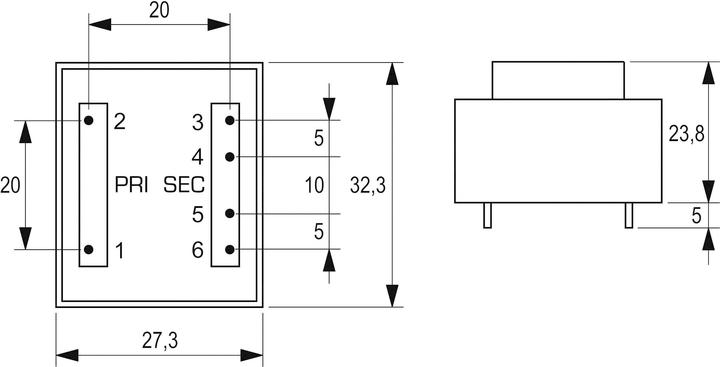

Dimensions: 32.3 x 23.8 x 27.3mm
Weight: 84g
Mounting type: Through-hole mounting
Maximum temperature: +70°C

EN 61558 ENEC 10; UL-approved component. Transformers for PCB mounting, short-circuit proof, series VB and PT. 230V AC 50 to 60 Hz primary. One or two secondary windings for series or parallel connection. For compliance reasons, secondary windings of transformers rated from 0.35 to 3.2 VA with 2 x 15 and 2 x 18 V outputs, as well as all transformers with 2 x 24 V outputs, should not be connected in series, as they will not comply with VDE 0550 approval. Series VB (0.35-3.2 VA) is inherently short-circuit proof. Series PT (4th generation) is short-circuit proof. Compact design with vacuum-encapsulated epoxy resin part according to UL94-V0 class. Two-part coil made of glass-fiber reinforced polyamide. 100% electrical testing and breakdown testing. High efficiency and low heating. Low capacitance between windings. Low noise level. Additional mounting points for secure PCB mounting (models from 4.5 VA).
