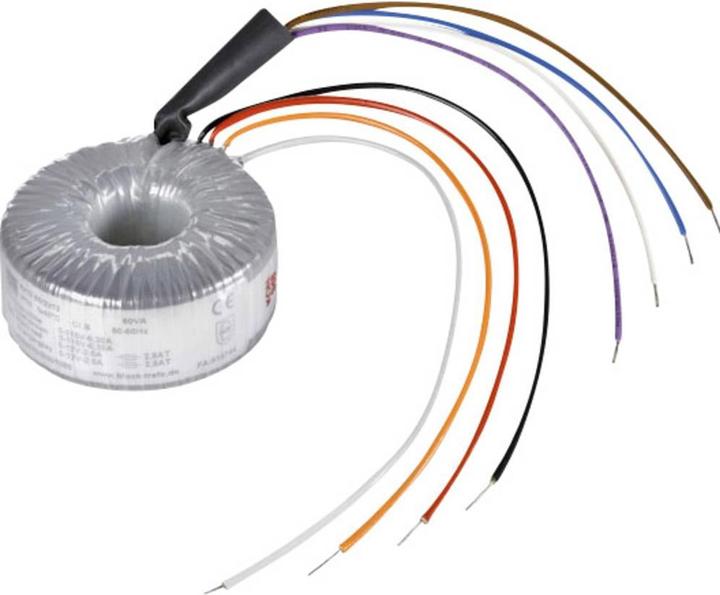

Block Toroidal Transformer 2x24V 225VA

Primary rated voltage: 115V AC, 230V AC
Secondary rated voltage: 2 x 24V AC
Rated power: 225VA
Number of outputs: 2
Weight: 2.4kg
Diameter: 115mm
Operating frequency min: 50Hz
Operating frequency max: 60Hz
Connection type: Cable
Temperature max: +40°C

Mounting kit included. RKD toroidal transformers feature a dual 115V AC input. These high-quality open-type toroidal transformers have dual 115V AC, 50/60 Hz primary and secondary windings that can be connected individually, in series, or in parallel as required. They are small and lightweight compared to traditional laminated stack designs, with very low magnetic radiation, very low induced noise (hum), and very low iron loss. Supplied with a mounting kit and insulation class B.
