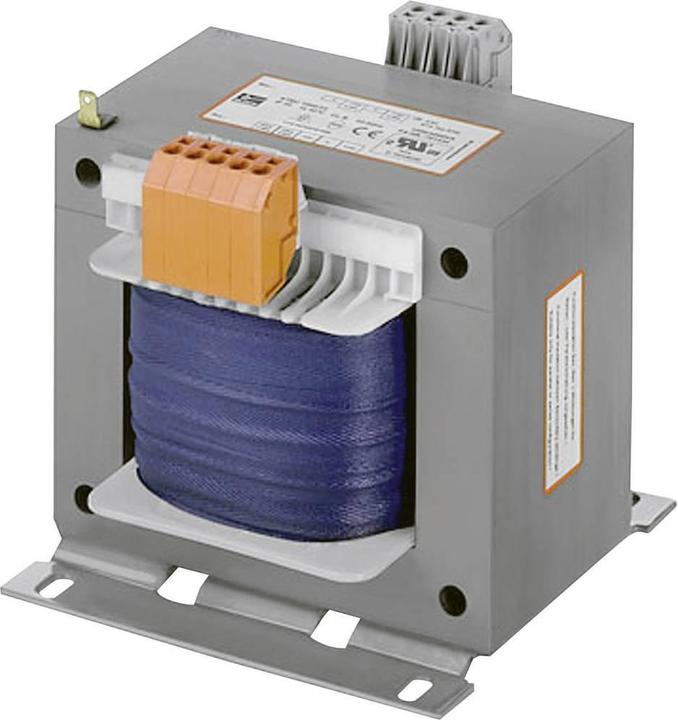

Block STEU Isolating Transformer 630VA 2x12V

Primary nominal voltage: 230/400 V ac
Secondary nominal voltage: 2 x 12 V ac
Rated power: 630 VA
Mounting type: Panel mounting
Dimensions: 150 x 118 x 143 mm
Minimum operating frequency: 50 Hz
Maximum operating frequency: 60 Hz
Maximum temperature: +40 °C

Block isolation transformers of the STEU series. Isolation transformers of the BLOCK STEU series with a dual input of 230 and 400 V ac. These safety transformers provide high power for their size due to their compact design. The transformers can be quickly wired thanks to the use of spring terminals. They are also easy to mount with their stable metal base plate featuring oval slots. Features: dual input voltage, good inrush behavior due to reduced starting currents, excellent corrosion protection, low noise, and contact-protected screw terminal connections in accordance with UVV BGV A3. Application area: An isolation transformer for safe galvanic separation of the input and output sides. The transformer is suitable for creating SELV and PELV due to the limitation on the output voltage. The design of the transformer can supply control systems according to VDE0113.
