Block PCB mount transformer 36VA 1x12 o/p
6 pieces in stock at supplier
Product details
Rated secondary voltage: 12V AC
Nominal power: 36VA
Rated primary voltage: 230V AC
Number of outputs: 1
Length: 87.2mm
Width: 60mm
Depth: 48.5mm

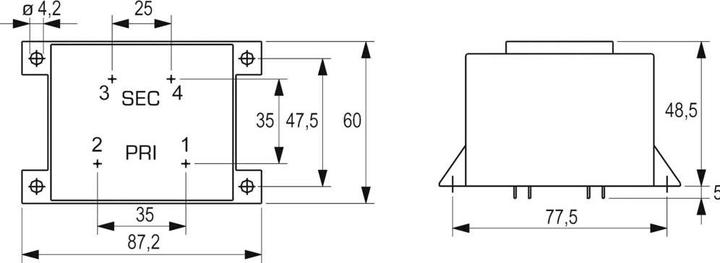

Dimensions: 87.2 x 60 x 48.5mm
Weight: 750g
Mounting type: Push-through mounting
Maximum temperature: +40°C
Minimum operating frequency: 50Hz
Maximum operating frequency: 60Hz
Complies with EN 61558, ENEC, and UL approval. To comply with VDE 0550 and UL506, the secondary windings of all transformers with two 24V outputs should not be connected in series. Features printed circuit board mounting, 230V AC primary, VC/VCM series. Available with one and two secondary windings for series or parallel connection. Vacuum encapsulated with resin to UL94-V0, low capacitance between windings, low noise, and 100% electrical and breakdown testing. Extra mounting points for secure PCB mounting (25VA and 36VA).
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 12 V |
Electric current | 3 A |
Power | 36 W |
Item number | 9911389 |
Manufacturer | Block |
Category | Transformer |
Manufacturer no. | VCM 36/1/12 |
Release date | 16.10.2018 |
Sales rank in Category Transformer | 4 of 1443 |
transformer type | PCB transformer |
input voltage | 230 V |
Output voltage | 12 V |
Electric current | 3 A |
Power | 36 W |
CO₂ emissions | 3.49 kg |
Climate contribution | CHF 0.11 |
Length | 87.20 mm |
Height | 87.20 mm |
Weight | 750 g |
