Block PCB mount transformer 10VA 1x12 o/p

Secondary rated voltage: 12V AC
Nominal power: 10VA
Primary rated voltage: 230V AC
Number of outputs: 1
Length: 51mm
Width: 43mm
Depth: 34.6mm

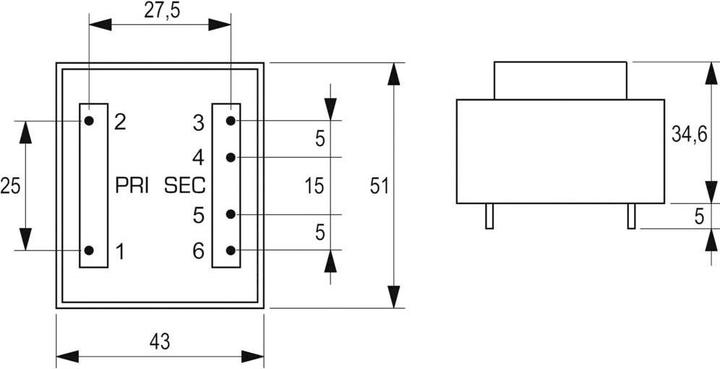

Dimensions: 51 x 43 x 34.6mm
Weight: 280g
Mounting type: Through hole mounting
Maximum temperature: +40°C
Operating frequency minimum: 50Hz
Operating frequency maximum: 60Hz

This product complies with EN 61 558, IEC 61558, ENEC, and UL approval. To comply with VDE 0550 and UL506, the secondary windings of all transformers with 2 24V outputs should not be connected in series. It is PCB mounted with a 230V AC primary and belongs to the VC/VCM series. It features one and two secondary windings for series or parallel connection, is vacuum potted with resin to UL94-V0, has low capacitance between windings, low noise, and has undergone 100% electrical and breakdown testing. Extra fixing points are provided for safe PCB mounting (25VA and 36VA).
