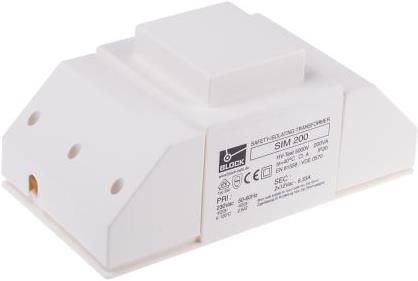

Block Isolation transformer,200VA 2x12V o/p

Primary rated voltage = 230V ac
Secondary rated voltage = 12V ac
Rated power = 200VA
Mounting type = panel mount
Number of outputs = 2
Length = 223mm
Width = 117mm
Depth = 97mm
dimensions = 223 x 117 x 97mm
Operating frequency min. = 50Hz
Operating frequency max. = 60Hz
Temperature max. = +40°C
Weight = 3.6kg

EN61558, VDE 0570, UL506. EN61-558, VDE 0570, UL506. Transformers, TIM series ; SIM. The safety isolating transformers in this series from Block are short-circuit proof and have thermal overload protection. The single-phase transformers include mounting holes for easy installation and have two independent secondary windings that can be connected in series or parallel. These very efficient safety isolating transformers feature protection by integrated primary fuse. Block safety isolating transformers benefit from the following features:. Encapsulated in plastic housing up to 300 VA Metal housing from 500 VA upwards Screw terminals on input and output Strain relief for connection cable Dual output for series or parallel connection High efficiency (typ. 88 %) 100 % electrical test and 5 kV breakdown test Max. Ambient temperature: +40 °C Insulation class: Class B (typical) Construction: Class 2 Protection class: IP20.
