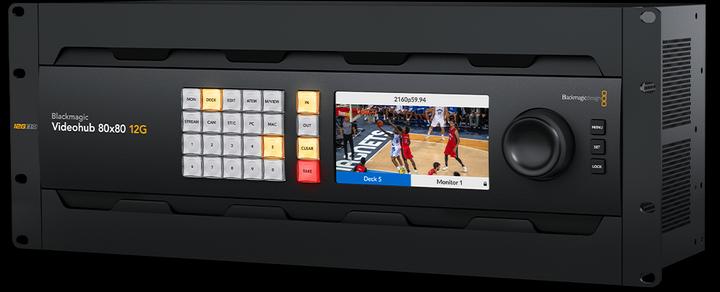

Blackmagic Videohub 80x80 12G
Product details

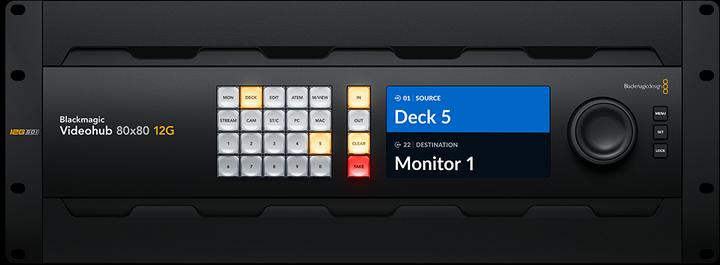

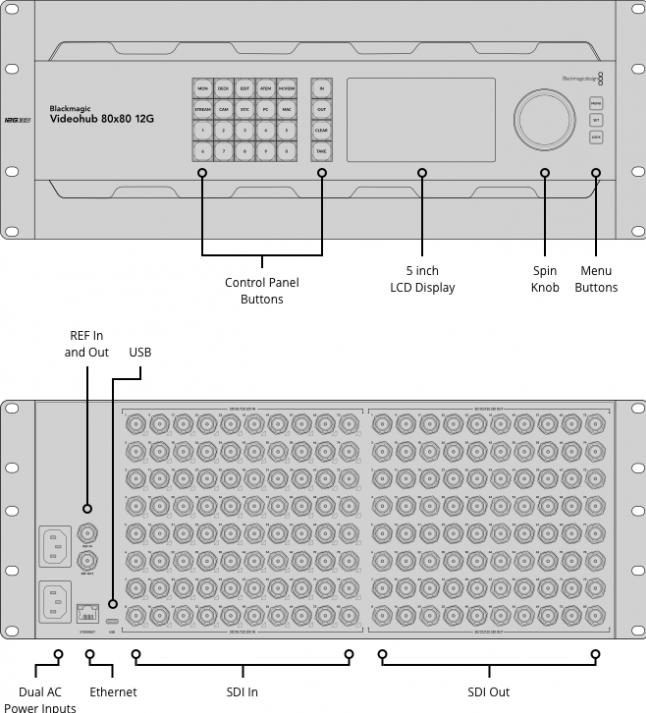

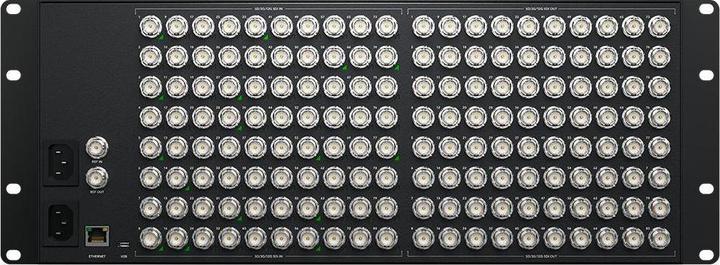

The Blackmagic Videohub 80x80 12G is an advanced latency-free router for any combination of SD, HD, and Ultra HD video signals, simultaneously on the same router. Eighty 12G-SDI inputs indicate an SDI signal via LEDs on each BNC connector. Additionally, there are eighty 12G-SDI outputs as well as redundant power and reference connections in a sleek design of four rack units. The front panel LCD allows you to view video before routing. You can also clearly read routing labels and video standards there. Signal distribution can be set directly with a button press or using the large rotary knob equipped with an electronic coupling. In addition to SDI reclocking and external control via Ethernet, all SDI video standards up to 2160p/60 are supported.
Item number | 38728482 |
Manufacturer | Blackmagic |
Category | Video monitors |
Manufacturer no. | BM-VHUBSMAS12G8080 |
Release date | 21.9.2023 |
Connections | SDI, USB-C |
Power supply | Electrical connection |
CO₂-Emission | |
Climate contribution |
Length | 23.80 cm |
Width | 48.20 cm |
Height | 17.70 cm |
Weight | 1090 g |
