Bernstein Switching hinge Cable radial

Series: SHS
Locking type: Hinge
Contact configuration: Normally closed
Current max: 1.5 A
AC voltage max: 230 V
DC voltage max: 60 V
Operating temperature min: -25°C
Operating temperature max: +70°C

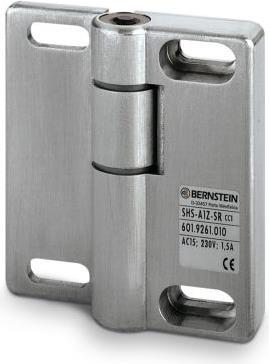

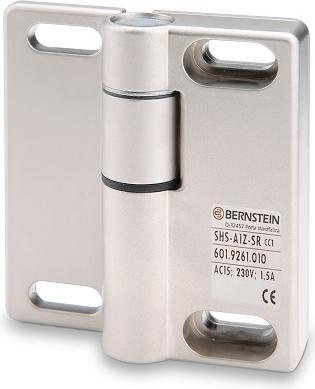

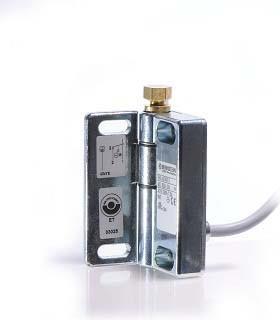

CE, UL, CSA, and BG certified. SHS - Safety switching hinge. This safety switching hinge offers high protection against tampering with a zinc die-cast metal housing. It features positive opening according to EN 947-5-1 and can have a fixed cable or plug connection, available in radial or axial configurations. Two SHS units can be combined to create a system up to control category 4. Accessories include cable couplings and a coupling with molded PVC cable (3x0.5 mm², 5 m) with a knurled nut and thread M12x1 and screw lock. Available in straight or angular versions. Temperature range: -25°C to +90°C.
