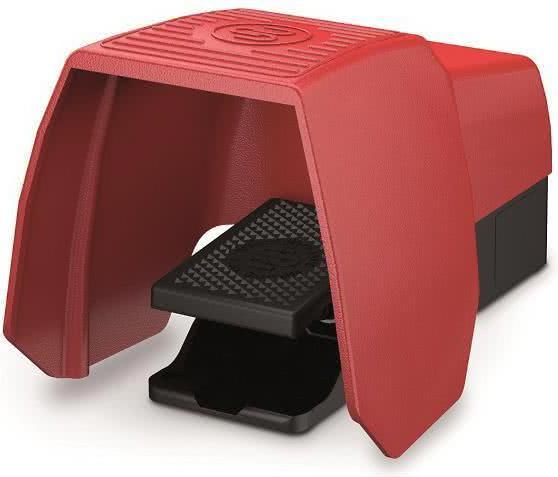

Bernstein Foot switch

Bernstein Foot Switch F1-SU1Z UN

Manufacturer: Bernstein
Designation: Foot Switch
Type: F1-SU1Z UN
Command Type: On or Off
With Protective Cover: Yes
With Locking: No
Material: Metal
With Protective Insulation: No
Color: Red
Number of Switching Positions: 2
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Number of Contacts as Changeover: 1
Latching Switching Function: No
Suitable for Safety Functions: Yes
Rated Operational Current Ie at AC-15, 230 V: 3 A
Protection Class (IP): IP65
Protection Class (NEMA): Other
Width: 156 mm
Height: 145 mm
Depth: 250 mm

Suitable for high demands in industrial applications. Existing mounting holes provide the option to screw the foot switches to the ground. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. An accident protection cover made of aluminum die-cast completely shields the pedal from above and the sides, ensuring high stability with its wide base. This design prevents accidental activation from falling objects from above or carelessness from the side.
