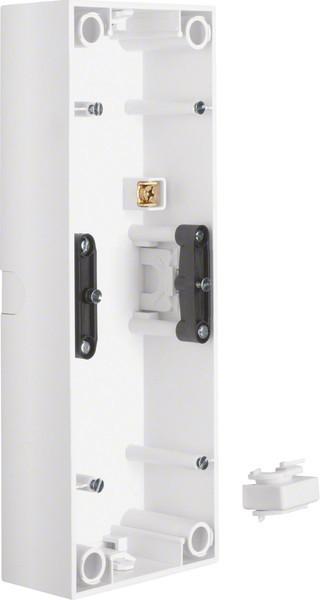

Berker S1 AP housing 10439909 3-gang polar white matt

Berker Surface-Mounted Enclosure 3f.pws 10439909

Manufacturer: Berker
Description: Surface-Mounted Enclosure 3f.pws
Type: 10439909
Composition: Surface-mounted enclosure
Suitable for installation over existing flush-mounted boxes: yes
Suitable for modular installation switch programs: no
Number of units: 3
Mounting direction: horizontal and vertical
Shape: rectangular
Table device: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: matte
Color: polar white
RAL number (similar): 9010
Transparent: no
With cover frame: no
Cross-channel mounting: no
With channel entry: yes
With cable entry: yes
With screw entry: no
With installation pipe entry: yes
Impact-resistant: no
Number of entries: 4
Protection class (IP): IP20
Width: 225.3 mm
Number of grounding terminals: 1
Height: 92.6 mm
Depth: 44.4 mm
Device width: 225 mm
Device height: 83 mm
Device depth: 42 mm

Berker Surface-Mounted Enclosure 3f.pws 10439909: additional details
Threefold surface-mounted enclosure in polar white, matte finish. Surface-mounted enclosure for vertical and horizontal installation, with cable/channel entry at the top/bottom, closed bottom, designed for surface installation, suitable for installation on flammable substrates, for use with covers and flush-mounted inserts.
EAN: 4011334230632.
