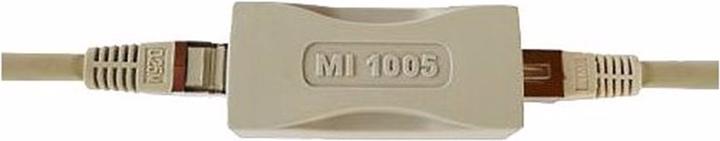

Baaske Network separation MI1005

Galvanic network isolation for medical electrical devices

• Simply plug in, no installation required
• No keystone module needed
• Compact, fits anywhere
• Protection against unpredictable currents in the patient environment
• No permanently mounted cables - easy replacement
• Long-term availability for at least 10 years
• Durable: 1 failure in 21,000,000 hours

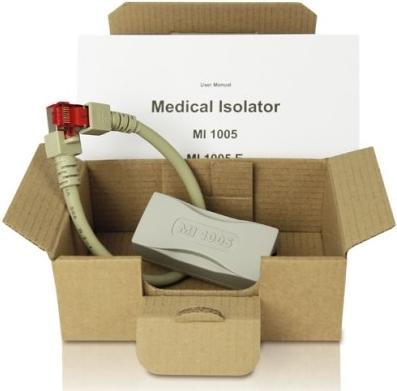

Speed 10/100/1000 MBit/s, full IEEE 802.3 compatibility, with standard certification from a notified body according to EN 60101-1, EN 60601-1-2, and UL E342310. Customs number 84733020. Includes 25 cm patch cable, manual, packaging, and serial number.

The MED MI 1005 Retail network isolator was developed to protect against unpredictable currents over the data lines of medical facilities. Network isolators enable galvanic network separation for medical electrical devices and systems according to DIN EN 60601-1. The galvanic network separations are passive electronic components without their own power supply. They behave completely transparently in the data network, so the installation of drivers or additional software is not required.

Commissioning is done by simply inserting it into an existing network cabling, for example, via the optionally available 25 cm connection cable. An external power source is not required for operation. The MI 1005 has been tested by the notified body for medical devices, the Eurocat Institute in Darmstadt, according to IEC 60601-1 and DIN EN 60601-1 as well as IEC 60601-1-2 and DIN EN 60601-1-2. Additionally, certification according to UL E342310 is also available. A summary of the test reports is available upon request.

Only UL94-V0 materials were used in the manufacture of the MI 1005. The MI 1005 network isolator is equipped with a dielectric strength of 5,000 V and offers full IEEE 802.3 compatibility.
