Axis Network camera sensor FA1105 8m

1280 x 720 pixels
Ratings
BrandMore from Axis
Delivered between Mon, 6.4. and Tue, 7.4.
Only 3 pieces in stock at supplier
free shipping

Product details

Short Info: Axis FA1105 Sensor Unit - Network Surveillance Camera - Color - 1920 x 1080 - Fixed Iris - Fixed Focal Length. Manufacturer: Axis Communications. Model: FA1105 Sensor Unit. EAN/UPC: 7331021052307.

Product Description: Axis FA1105 Sensor Unit - Network Surveillance Camera. Device Type: Network Surveillance Camera - Fixed. Camera Mounting Type: Recessed Installation, Wall Mounting, Ceiling Mounting. Dimensions (Width x Depth x Height): 2 cm x 2.9 cm x 2 cm. Weight: 16 g. Connectivity Technology: Wired. Camera Color. Max. Resolution: 1920 x 1080. Frame Rate: 30 frames per second. Optical Sensor Type: CMOS - 8.5 mm (1/3"). Minimum Illumination: 0.2 Lux - Color. Focal Length Control: Fixed Focal Length. Focal Length: 2.8 mm. Lens Iris: F/2.0 - Fixed Iris. Included Cables: 1 - Video Cable - Integrated - 8 m. Performance Features: Wide Dynamic Range (WDR).

Operating Conditions: -20 °C - 50 °C, 10 % - 85 % (non-condensing) relative humidity.

Detailed Specifications: General. Device Type: Network Surveillance Camera. Camera Mounting Type: Recessed Installation, Wall Mounting, Ceiling Mounting. Connectivity Technology: Wired. Width: 2 cm. Depth: 2.9 cm. Height: 2 cm. Weight: 16 g. Camera Type: Color - Fixed. Max. Digital Video Resolution: 1920 x 1080. Exposure Range: 1/32500 sec - 1/30 sec. Minimum Illumination: 0.2 Lux - Color. Performance Features: Wide Dynamic Range (WDR). Image Sensor Type: CMOS 8.5 mm (1/3"). Lens Construction Type: Fixed Focal Length. Focal Length: 2.8 mm. Lens Iris: F/2.0 Fixed Iris. Horizontal Field of View (Degrees): 111. Vertical Field of View (Degrees): 61.

Miscellaneous: Accessories Included: Mounting Bracket. Included Cables: 1 x Video Cable - Integrated - 8 m. Certifications: EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-14, EN 50581, EN 62368-1, IEC 62368-1. Operating Conditions: Min. Operating Temperature: -20 °C. Max. Operating Temperature: 50 °C. Relative Humidity (in operation): 10 % - 85 % (non-condensing).

Key specifications

Network camera type
Surveillance camera indoor
Lens type
Prime lens
Advanced functions
Microphone, Night vision function, PTZ, Speakers
Network interface
RJ45 port, Wi-Fi
Power supply
PoE

General information

Item number
6398627
Manufacturer
Axis
Category
Network camera
Manufacturer no.
0913-001
Release date
12.7.2017

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal, Plastic
Material
Aluminium, Plastic

Camera properties

Network camera type
Surveillance camera indoor
Set size
Single camera
Camera resolution
2.20 Mpx
Max. picture resolution
1280 x 720 pixels
Viewing angle (H)
111°
Viewing angle (V)
61°
Lens type
Prime lens
Focal length
2.8 mm
Aperture
f/2
Image sensor type
CMOS
Refresh rate
30 FPS
Advanced functions
Microphone, Night vision function, PTZ, Speakers

Connections

Connection A
RJ45

Network

Network interface
RJ45 port, Wi-Fi
Max. port speed
1000 Mbit/s

Smart home features

Smart home
Not compatible

Application range

Installation place
Ceiling, Wall
Application range
Home use

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
32.36 kg
Climate contribution
CHF 0.78

Scope of delivery

Number of cameras
1x
Scope of delivery

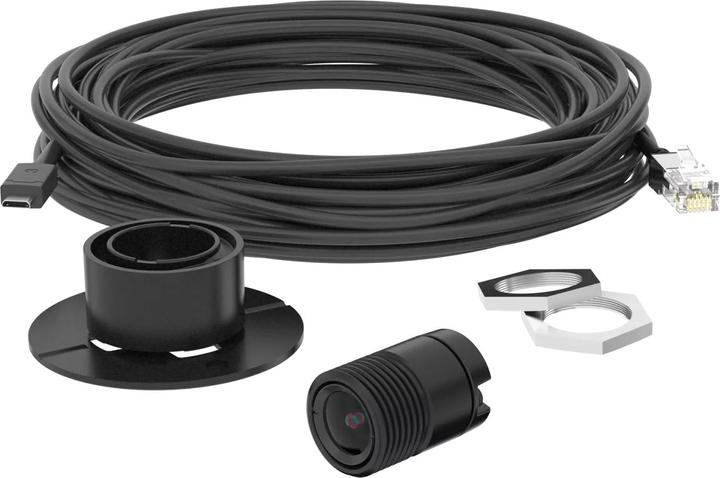

1x Axis sensor module FA1105 8m, 1x cable (black, 8m), 1x Ins, 1x mounting bracket, 2x lock nut

Product dimensions

Height
20 mm
Length
175 mm
Width
20 mm
Weight
290 g

Package dimensions

Length
17 cm
Width
16.20 cm
Height
6.80 cm
Weight
282 g
