Product details
Resistance: 6.8Ω
Power: 300W
Series: HS300
Enclosure Type: Aluminum housing
Tolerance: ±5%
Technology: Wound
Connection Type: Axial
Maximum Temperature Coefficient: -100ppm/°C
Maximum Temperature Coefficient: +100ppm/°C
Temperature Coefficient: ±100ppm/°C
Total Length: 184.4mm

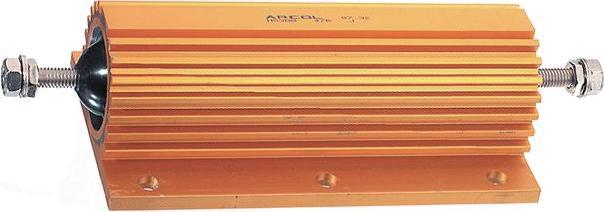

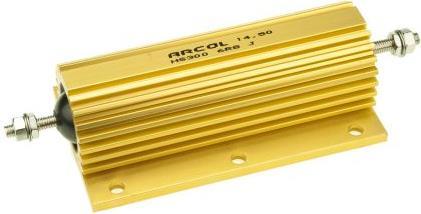

To achieve the specified maximum rated power of this power resistor, it has been designed for direct mounting on an appropriate heat sink with a thermal connection. Power wire resistor 300 W in aluminum housing, Series HS. Power wire resistors in aluminum housing for 300 W, manufactured according to the requirements of MIL 18546, IEC 115, and RoHS. Compact size for rated power, winding design maximizes pulse load capacity.
Nominal power | 300 W |
permissiveness | 5 ± % |
Item number | 10105583 |
Manufacturer | Arcol |
Category | Resistor |
Manufacturer no. | HS300 6R8 J |
Release date | 13.11.2018 |
External links |
Resistor type | Wire resistance |
Resistor | 6.80 Ω (ohm) |
Nominal power | 300 W |
permissiveness | 5 ± % |
CO₂-Emission | |
Climate contribution |
Height | 0.06 m |
Width | 0.08 m |
Length | 0.20 m |
