Product details

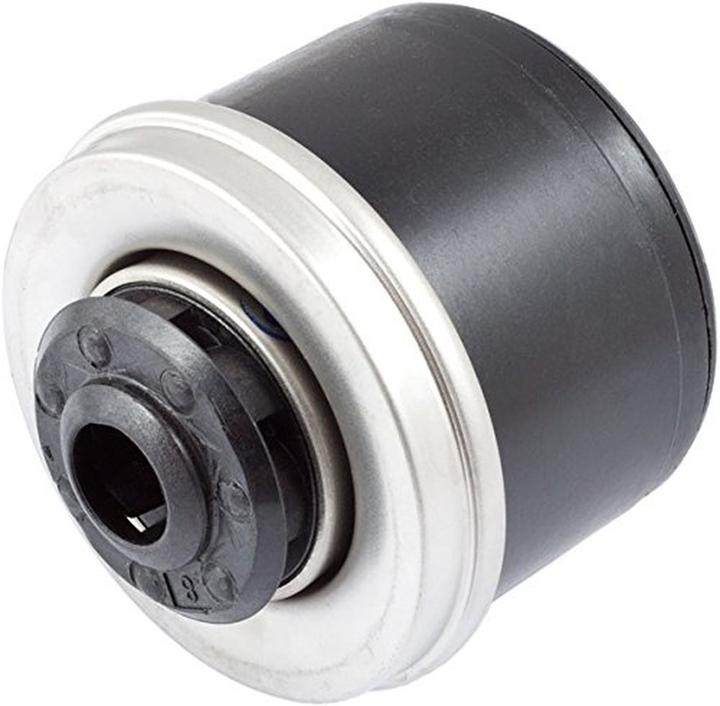

The D5 pump mechanism represents a powerful pump motor that needs to be completed with a suitable housing to form a complete pump. The electronically commutated ball motor operates extremely quietly and has a long lifespan.

The pump's performance can be adjusted via a PWM signal; alternatively, the pump can also be controlled through the input voltage. Additionally, a tachometer signal is available for monitoring the pump's function.

Attention: The Aqua Computer D5 pump features an optimized PWM input and can therefore be controlled by any PWM output designed according to Intel specifications. In particular, this pump can be operated from the aquaero 5/6 on the fan channels with an additional PWM output without incurring power losses at the aquaero. All currently available D5 pumps with PWM input from other manufacturers (as of January 2015) have different hardware and may not be properly controlled by the aquaero 5/6 via PWM! The Aqua Computer D5 pump is compatible with all known controllers.

Key specifications

Max. flow
1500 l/h
Max. delivery head
3.70 m
Pump Power connection
4PIN Molex
water inlet
No
water outlet
No
Item number
4236508

General information

Manufacturer
Aqua Computer
Category
Water cooling pumps
Manufacturer no.
41105
Release date
8.4.2015
External links
Manufacturer's site (de)

Water cooling pump properties

pump type
D5 Series
Max. delivery head
3.70 m
Max. flow
1500 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
No
water inlet
No
Max. system temperature
60 °C
Exact colour description
Black
Power consumption
23 W
Material
Ceramic, Plastic
Approved liquids
Water, water/glycol mixture

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
PWM input and tachometer signal

Product dimensions

Length
66 mm
Width
66 mm
Height
57 mm

Package dimensions

Length
11.90 cm
Width
8 cm
Height
8.40 cm
Weight
270 g
