Product details
Switching sequence: Momentary
Contact arrangement: Double-pole double-throw switch (DPDT)
Mounting type: Front panel mounting
Panel cutout diameter: 6.5 mm
Contact rated current: 4 A @ 30 V dc
Contact AC rated voltage: 125 V
Contact DC rated voltage: 30 V
Actuator color: Silver
Operating temperature range: -40 to +85 °C

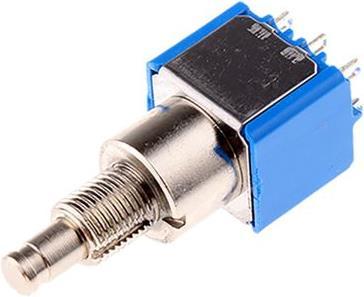

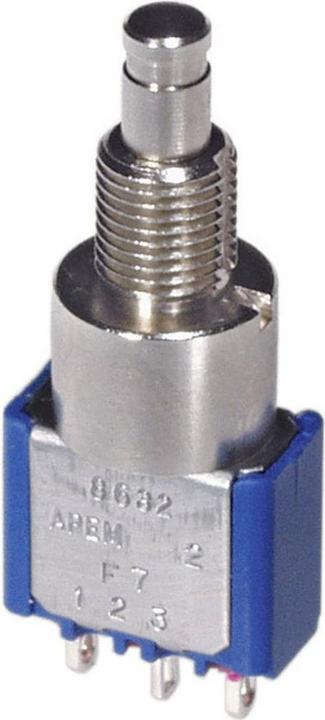

Apem Miniature Push Button Switches. The Apem 8000 series miniature switches include momentary and latching switches available as single-pole and double-pole toggle switches. The compact miniature housing features a stainless steel body and epoxy-sealed terminal connections, while the actuator made of nickel-plated brass is compatible with interchangeable colored caps. Optional protective caps are also available. Features and benefits: Electrical lifespan: 30,000 cycles, Insulation resistance: 1,000 MOhm @ 500 V dc, terminal connections available in gold-plated brass or gold-plated silver. Available in this series:
Part No. 103-5732: Momentary switch as a single-pole toggle switch
Part No. 103-5748: Latching switch as a single-pole toggle switch
Part No. 103-5760: Momentary switch as a double-pole toggle switch
Part No. 103-5776: Latching switch as a double-pole toggle switch
Part No. 103-5782: Black push button cap
Part No. 103-5798: Red push button cap
Part No. 103-5805: Green push button cap
Part No. 119-3692: Protective cap
Part No. 692-8428: Momentary switch as a single-pole toggle switch
Part No. 692-8430: Latching switch as a single-pole toggle switch
Part No. 692-8437: Momentary switch as a double-pole toggle switch
Part No. 692-8434: Latching switch as a double-pole toggle switch.
