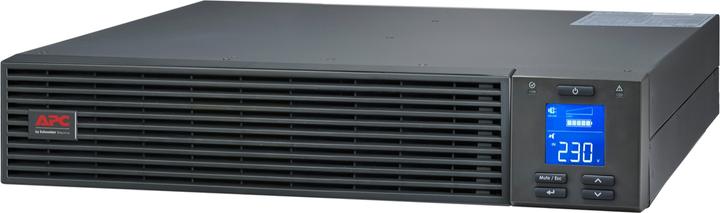

APC Easy UPS SRV SRV3KRILRK - UPS (Rack - Mountable)
3000 VA, 2400 W, Online double converter UPSfree shipping
The APC Easy UPS SRV SRV3KRILRK is a state-of-the-art uninterruptible power supply (UPS) specifically designed for rack mounting. With an output capacity of 3000 VA and a power rating of 2400 watts, this device provides reliable protection for critical systems in server rooms and network cabinets. The online double-conversion technology ensures a continuous power supply, even during voltage fluctuations or outages. The UPS is equipped with seven AC outlets, allowing for flexible connections to various devices. Additionally, it features RS-232 and USB ports for easy integration and monitoring. The runtime at full load is up to 12.7 minutes, providing sufficient time for an orderly shutdown or switching to alternative power sources. The APC Easy UPS SRV SRV3KRILRK is therefore an ideal solution for businesses that rely on uninterrupted power supply.
Operating time at full load | 12.70 min |
Model | 19" rack |
Scope of application | Network cabinet, Server room |
Plug type | C13, C14, C19, C20 |
Item number | 16180730 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | SRV3KRILRK |
Release date | 14.3.2023 |
May include power adapter | No |
UPS type | Online double converter UPS |
Power output | 2400 W |
Output power capacity | 3000 VA |
Model | 19" rack |
Rack Unit | 4U |
shaft type | Sine wave |
UPS protection functions | Overvoltage protection |
Scope of application | Network cabinet, Server room |
Plug type | C13, C14, C19, C20 |
USB ports | USB-B |
Data ports | RS-232 (1x) |
Electrical safety | Due to the high power, this device requires a socket outlet fused with 16 amperes (type 23). If no suitable socket is available, the conversion must be carried out by an authorised installer. |
input voltage | 110 - 285 V |
output voltage | 240V |
Max. input current | 4 A |
Input frequency | 40 / 70 Hz |
Output frequency | 50 - 60 Hz |
overvoltage protection | 600 J |
Efficiency full load | 88 % |
Efficiency battery operation | 88 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 50 dB |
Protection type (IP code) | IP20 |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 42500 g |
Voltage | 72 V |
Capacity | 648 Ah |
Charging time | 4 h |
Operating time at full load | 12.70 min |
Operating time at half load | 30.10 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | USB cable |
Items per sales unit | 1 x |
Height | 480 mm |
Weight | 66.80 kg |
Width | 600 mm |
Length | 632 mm |
Length | 80 cm |
Width | 62 cm |
Height | 52 cm |
Weight | 20 kg |
