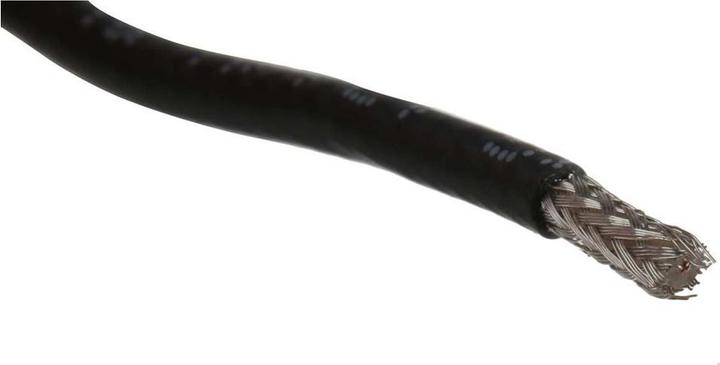

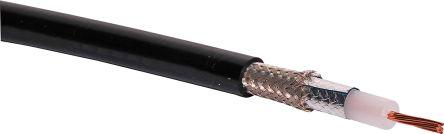

AlphaWire COAXIAL CABLE RG174/U
Antenna cableDelivered between Mon, 26.5. and Thu, 5.6.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
Distrelec CH
Product details
Coaxial type = RG174/U
Outer diameter = 2.59mm
Impedance = 50 Ω
Roll length = 304m
Jacket colour = Black
sheath material = polyvinyl chloride PVC
Insulation material = PE
Conductor material = Bare Copper Steel Coated
strand type = stranded wire
Core strands = 7/34
Number of strands = 7
Strand size = 34 AWG
Attenuation = 48 dB/100 ft at 1 GHz, 6 dB/100 ft at 50 MHz
Operating temperature max. = +80°C
MIL-C 17D and UL 1354 Coaxial cable RG 174/U. Alpha Wire's MIL-C- and UL 1354-approved RG 174/U cable has been developed to transmit video data of the highest quality. Features and benefits ; Low capacitance ; High transmission speeds and tight tolerances for maximum signal integrity ; Conductor: 26 (7/34) AWG BCW.
