Alphacool Laing DDC310 - Complete Edition Ice Sheet - Black/Acetal

Delivered between Fri, 20.6. and Wed, 25.6.
More than 10 items in stock at supplier

Product details

The widely used Laing DDC pumps are getting an upgrade. Freshly packaged, this pump can confidently begin its life. Some details have been changed. For one, the performance has been reduced to address a common issue: noise. Few other pumps can compete in terms of sound development. For the most common water cooling system, which includes cooling for the CPU and GPU, this pump should be the first choice.

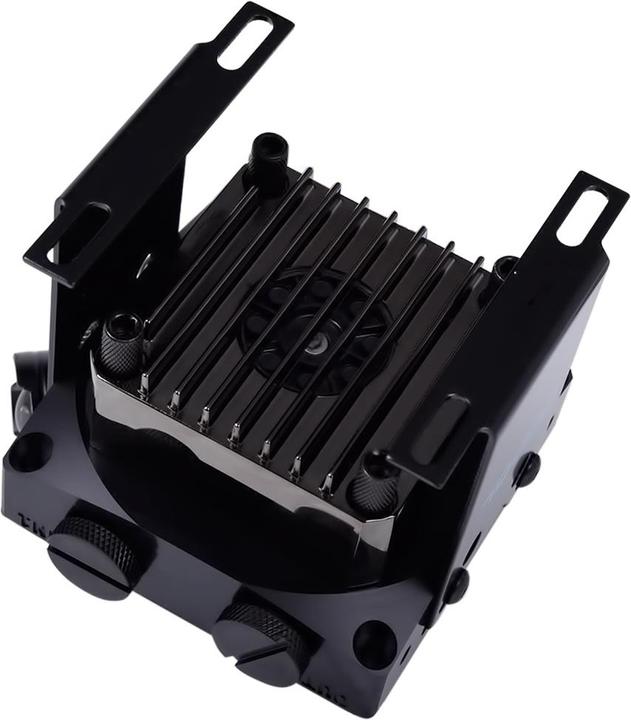

Unlike before, this pump does not come in the familiar plastic housing. New is the perfectly tuned brass housing that adorns the exterior. This new casing promises a longer lifespan for the pump. Air flows through the cooling fins, which is directed to the pump board via an internal thermal pad.

Another feature is the included decoupling option. With the special M4 screws, the included decoupling can be screwed into the head of the screw, which is then connected to the housing.

The innovation in this set is that it uses the V.2 of the Alphacool Eisdecken, which offer the possibility of three G1/4" connections for the inlet and two G1/4" connections for the outlet.
Inlet options: Front, Side, Top
Outlet options: Front, Top

Additionally, three G1/4" sealing screws are included to close off any unused In/Out connection options.

Another feature is the pre-mounted bracket, as we know it from previous sets or the new Eisbechers. This allows the pump set to be mounted directly on the case floor.

Now available as a combo with the proven Alphacool Eisdecke Laing DDC Plexi or Acetal attachment!.

Key specifications

Max. flow
200 l/h
Max. delivery head
2.44 m

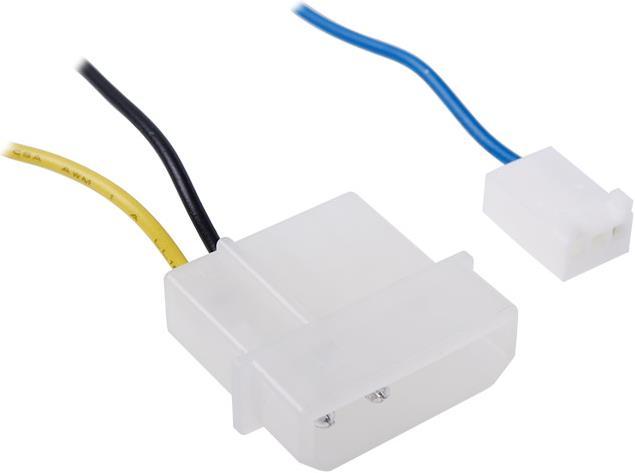

Pump Power connection
4PIN Molex
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
5805392

General information

Manufacturer
Alphacool
Category
Water cooling pumps
Manufacturer no.
13196
Release date
21.6.2016
External links

Water cooling pump properties

pump type
Laing DDC
Max. delivery head
2.44 m
Max. flow
200 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
30 °C
Exact colour description
Black
Power consumption
10 W
Material
AluminiumBrassHard coal
Approved liquids
Water, water/glycol mixture

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Decoupling setInstallation materialPedestal

Product dimensions

Length
61 mm
Width
60 mm
Height
21 mm
Weight
660 g

Package dimensions

Length
9 cm
Width
10 cm
Height
11 cm
Weight
668 g
