Alphacool Core Geforce RTX 4080 Reference Design with Backplate

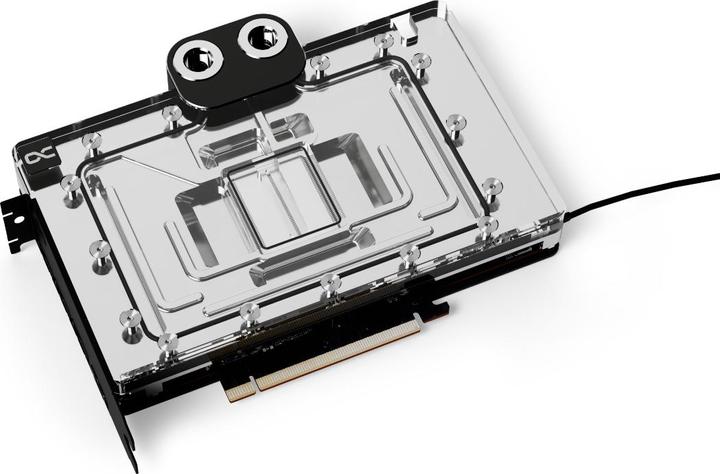

The core product series from Alphacool is characterized by high quality, outstanding performance, and a uniform, functional design language. The core of this cooler is the copper cooler, which is milled from a single piece of copper together with the end terminal. The fine finish, combined with the hard and resistant chrome plating of the entire copper radiator, meets the highest quality standards. The two integrated G1/4" brass threads, left in chrome, stand out visually from the terminal and are one of the key points of the new design language evident in all products of the Core series. The aluminum backplate, adapted to the design, forms a unit together with the terminal and convinces with a clear and homogeneous appearance on the back of the radiator. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly and well. The technical development is evident in the water supply to the nozzle plate and in the optimization of the jet plate itself. This was completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and distances have been changed, the cooling surface has been enlarged, and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft heat-conducting pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Technical data:
Radiator dimensions (L x W x H): 201.36 x 145.90 x 32.80mm
Material radiator bottom: chrome-plated copper
Material radiator top: acrylic
Connections: 4 x G1/4"
Thickness radiator bottom: 11.3mm
Thickness radiator fins: 0.4mm
Spacing radiator fins: 0.4mm

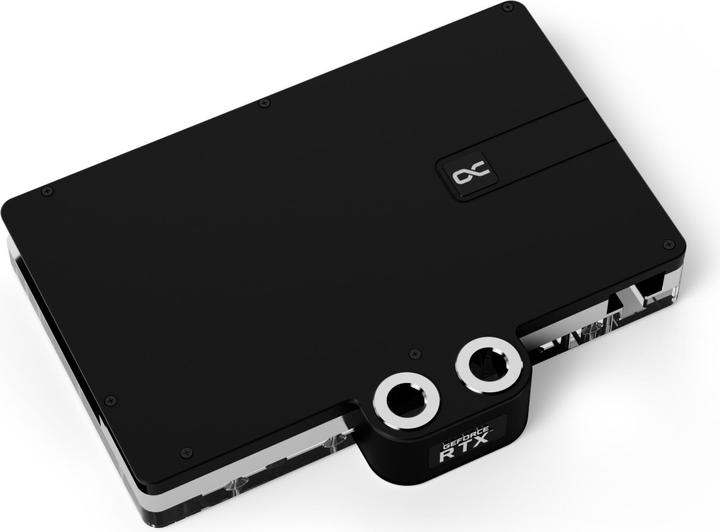

Backplate dimensions (L x W x H): 201.36 x 122.90 x 5mm
Material: aluminum
Color: black.
