Allnet Accessories - Aluminium enclosure kit with active/passive cooling

The version of the Raspberry Pi 4B requires more cooling and has two micro HDMI ports. Therefore, the designed housings for the Raspberry Pi 3B are no longer compatible. The ALLNET Raspberry Pi 4 aluminium enclosure has been specially developed for passive cooling via the enclosure and, under standard conditions, can dissipate the heat emitted by the Raspberry Pi 4 to the environment without active support. For special environments and additional cooling power, there are two active radiators. The fans are connected to pin 4 (red) and pin 6 (black).

Features:

• Specially designed for the Raspberry Pi 4 Model B protective case with active/passive cooling
• Very high-quality aluminium case with cooling ribs and enlarged surface

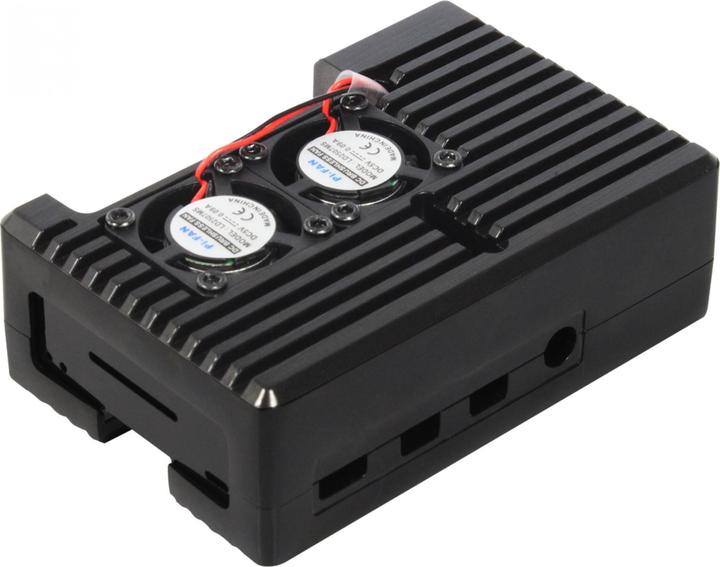

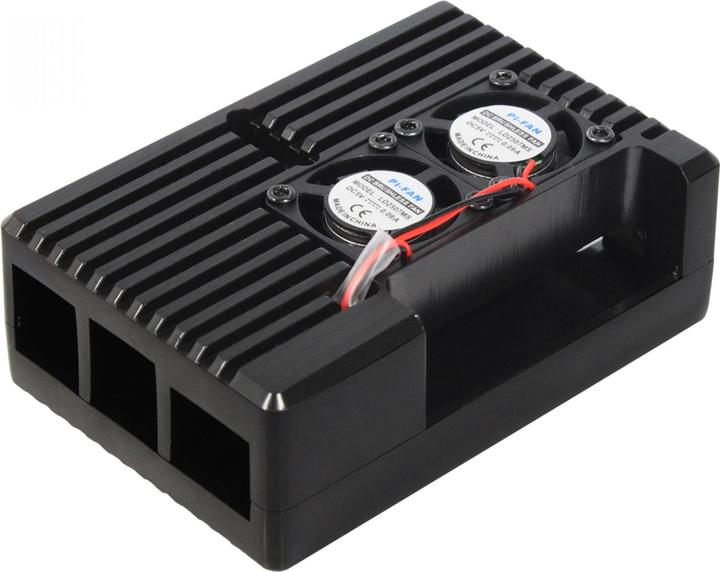

• The enclosure cover can accommodate 2 x 20 x 20 mm fans, preventing the Raspberry Pi 4 from overheating due to high ambient temperatures
• Openings for all connections such as power, video, audio, USB, LAN, microSD card, GPIO, camera CSI, and display DSI

Dimensions: 60 x 31.5 x 91 mm (W x H x D)
Material: Aluminium
Colour: Black
Fan: 10,000 ± 5% RPM
Power Consumption: 0.3W - 0.06A/5V
Size: 20 x 20 x 6 mm
Model: LD2507MS - DC Brushless Fan
Compatibility: Raspberry Pi 4B
I/O openings:

• 1 x LAN (RJ45)
• 4 x USB
• 1 x USB Type C (Power)
• 1 x Audio
• 2 x Micro-HDMI
• 1 x Preparations for external antenna

Platform: Raspberry Pi 4
Suitable for: Raspberry Pi 4 Model B
Colour: Black
Power supply: Without external
Cooling: Active (2 x fans) and passive with integrated cooling unit

Scope of delivery:

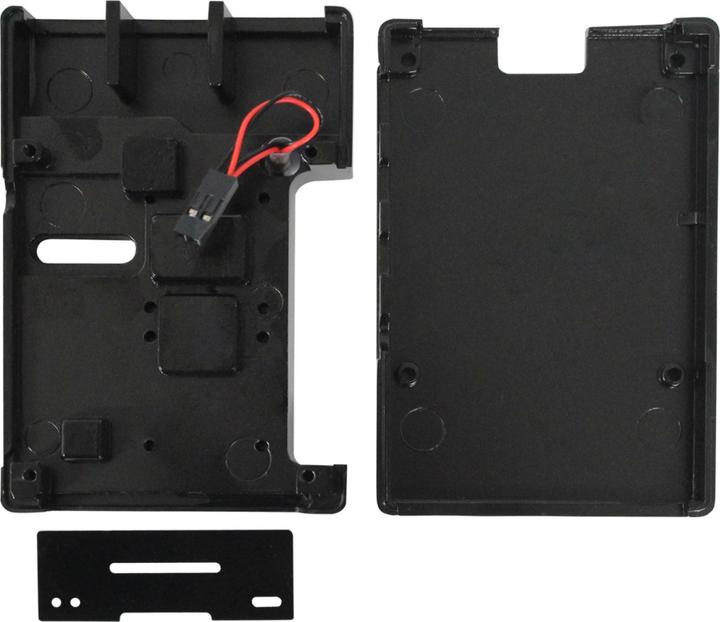

• 1 x housing (2 parts top and bottom)
• 4 x cooling units (2 parts bottom and top)
• 4 x cooling pads (1 set of 4)
• 4 x housing screws
• 8 x screws
• 2 x power supply 5V/0.09A with Dupont socket
• 1 x hexagon
• 1 x cover.
