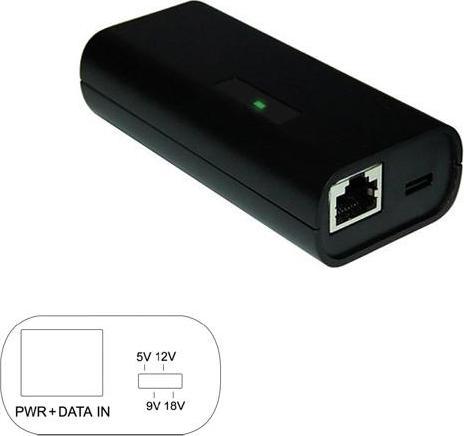

Alfa Network PD-1000D - 802.3at Gigabit Switchable PoE

Alfa Network Power over Ethernet (PoE) Splitter

The PD-1000D (supports 5 V, 9 V, 12 V, 18 V DC) is a revolutionary technology for powering Ethernet devices such as IP telephones, wireless access points, and internet cameras. This technology allows for the delivery of power necessary for operation through standard Ethernet cabling.

Product Features:

• Transmits power and data to your LAN devices via Ethernet cable
• IEEE Standard 802.3at/af
• Supports 5 V, 9 V, 12 V, 18 V output voltage
• Output voltage adjustable via switch
• Delivers power and data to end devices
• Supports Gigabit Ethernet
• Additional +/- 15 KV Ethernet isolation for ESD/surge protection

Standards:

• IEEE802.3, 10BASE T/1000BASE-T
• IEEE802.3u, 100BASE-TX
• IEEE802.3at, IEEE802.3af, Power over Ethernet

Interfaces:

• Data and power input: 1x RJ-45
• Data output: 1x RJ-45
• Power output: 1x DC Jack (5 V, 9 V, 12 V, 18 V), Switch: 1x 4 segment DIP Switch
• Power plug diameter: 5.5 x 2.1 x 12 mm

Transmission Media:

• RJ-45 (10/100BASE-T): Cat. 3, 4, 5 UTP/STP
• RJ-45 (1000BASE-T): Cat. 5, 5e, 6, 7 UTP/STP

LED Indicators:

• Power (green)
• Surge protection: +/-15 KV

Power Consumption: DC 48 V

Dimensions: 28 (H) x 55 (W) x 81 (D) mm

Operating Temperature: 0 °C ~ 40 °C.
