Alfa Network 4G CAMPPRO 2+ - R36AH, Tube-U4Gv2, AOA-4G-5AM plus accessories

ALFA 4G CampPro 2+ Kit - R36AH, Tube-U4Gv2, AOA-4G-5AM plus Accessories

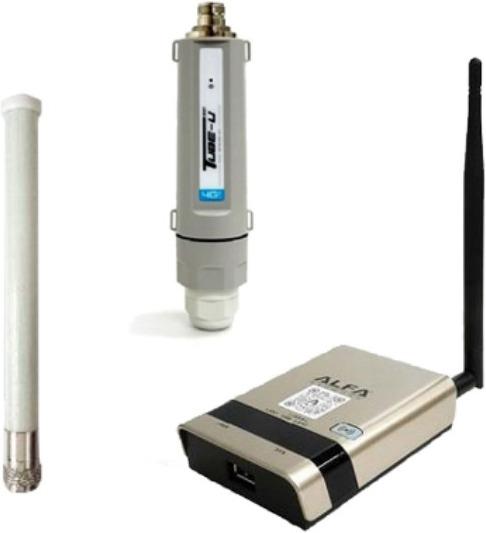

The 4G CampPro 2+ Kit includes an R36AH USB Wi-Fi and 4G modem extender router, a Tube-U4G outdoor 4G/LTE USB modem, an AOA-4G-5AM outdoor 4G omni antenna, and accessories.

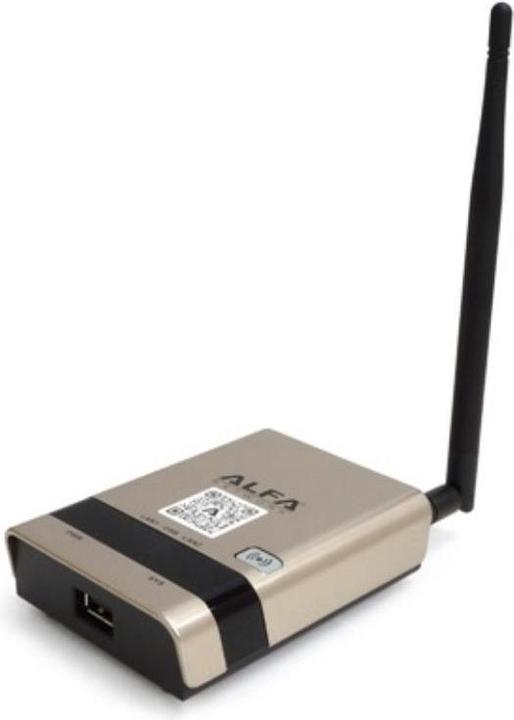

The ALFA R36AH is a USB Wi-Fi and 4G modem extender router that supports OpenWRT and setup via QR code. It offers fast data rates of up to 300 Mbps (802.11n) and is compatible with older 802.11b/g devices.

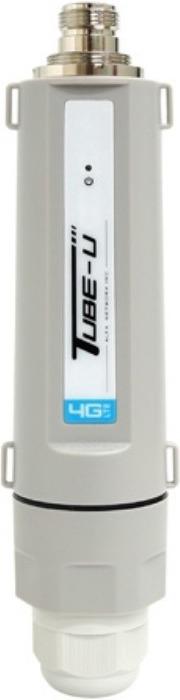

The ALFA Tube-U4Gv2 is a waterproof 4G/LTE USB modem designed for outdoor use.

The ALFA AOA-4G-5AM is an omnidirectional 4G antenna for outdoor applications. It operates on various frequencies and is equipped with an N connector. It is made of durable fiberglass.

Package Contents

• R36AH USB Wi-Fi/4G modem extender router
• Tube-U4G outdoor 4G/LTE USB modem
• AOA-4G-5AM outdoor 4G omni antenna
• USB cable

Specifications R36AH

• Wi-Fi Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.142 - 2.472 GHz
• Channel Width: 20/40 MHz
• Data Rate: 802.11b: up to 11 Mbps; 802.11g: up to 54 Mbps; 802.11n: up to 300 Mbps
• Antenna: 1x internal, 1x external
• LED Indicators: Power, LAN, WAN, WLAN, USB
• Power Requirement: 12 V DC
• Wi-Fi Security Key: 64/128-bit WEP, WPA-PSK, WPA-EAP (PEAP/TTLS), WPA2-PSK, WPA2-EAP, WPA mixed, 802.1x authentication
• Operating Temperature: -20°C ~ +40°C
• Storage Humidity: 10 ~ 90% (non-condensing)
• Dimensions (mm): 93 x 70 x 26
• Weight: 74 g

Specifications Tube-U4Gv2

• Data: LTE FDD: max. 150 Mbps DL/max. 50 Mbps UL; LTE TDD: max. 130 Mbps DL/max. 35 Mbps UL; DC-HSDPA: max. 42 Mbps DL; HSUPA: max. 5.76 Mbps UL; WCDMA: max. 384 Kbps DL/max. 384 Mbps UL; EDGE: max. 296 Kbps DL/max. 236.8 Kbps UL; GPRS: max. 107 Kbps DL/max. 85.6 Kbps UL
• Antenna Connector: N socket
• Interface: Mini-USB 2.0; Standard SIM card with 6 pins
• LED Indicators: Power/Connection
• Required Power: 5 V.
