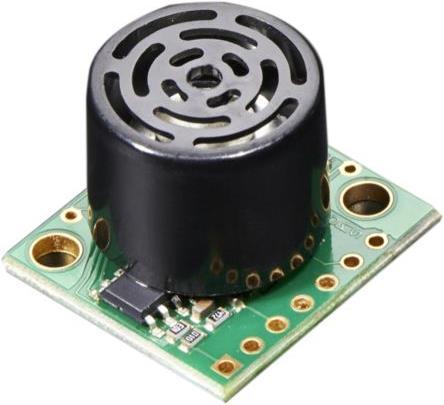

Adafruit Maxbotix Ultrasonic Rangefinder LV-EZ4

Sensor technology: Ultrasonic distance sensor
Device presented: LV-EZ4
Kit classification: Module
Kit name: Maxbotix

Ultrasonic rangefinder sensors Maxbotix series LV-EZx. LV-MaxSonar-EZ modules are non-contact, outdoor ultrasonic range sensors that detect objects in a specific area. These sensors are not affected by the color or other visual characteristics of the detected object. Ultrasonic sensors measure the time it takes for emitted ultrasound to reflect off nearby objects and bounce back. Based on this time, the sensor then outputs a distance value.

Basic functions:

• Sensor frequency: 42 kHz
• Max. detection rate: 20 Hz
• Object range: 150 to 6000 mm
• Continuously adjustable gain for control and side lobe suppression
• Available in five versions with different preset beam patterns
• Triggered operation provides one-time distance detection
• Free-running operation provides continuous measurement and output of distance information
• Output interfaces are active simultaneously
• Output formats: serial UART, analog (Vcc/512)/inch, PWM (147 μs/inch)
• Learns ringdown pattern when range selection command is given
• Multiple sensors can be used in a single system
• Designed for protected indoor environments
• Power supply: +2.5 V to +5.5 V dc @ 2 mA typical current
• Dimensions: 19.9 x 22.1 x 15.5 mm

Applications: mobile robot navigation, collision avoidance, safety.

RS product codes:

• 124-5445 LV-MaxSonar-EZ0: Widest and most sensitive beam, detection of humans up to 3000 mm
• 124-5441 LV-MaxSonar-EZ1: Most common sensor, detection of humans up to 2400 mm
• 124-5446 LV-MaxSonar-EZ2: Less sensitive than EZ1, detection of people up to 1800 mm
• 124-5447 LV-MaxSonar-EZ3: Excellent suppression of objects lying on the side, detection of people up to 1500 mm
• 124-5448 LV-MaxSonar-EZ4: Best suppression of objects lying on the side, detection of people up to 1200 mm.
