Abus TVVR36422T Complete set with NVR and 2 PoE mini-tube cameras
1920 x 1080 PixelsOnly 1 item in stock at supplier
Product details

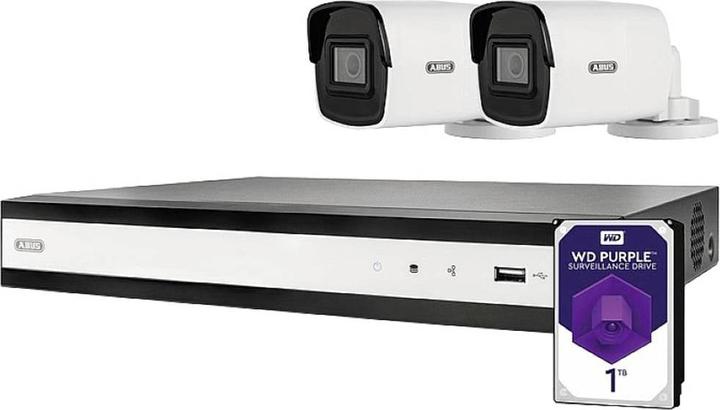

Video surveillance made easy – everything in one set. This complete set allows for simple installation of video surveillance in indoor or outdoor areas. Included in the set are a 4-channel PoE network recorder with a built-in hard drive offering 1 TB of storage for several weeks of non-stop recording, two PoE-capable outdoor cameras, three power supplies, and connection accessories.
User-friendly professional recording technology. The recorder can start recording manually, on a schedule, or via motion sensor. Operation is conveniently done using a mouse. The video footage is stored in brilliant quality at 25 frames per second (real-time), takes up minimal space on the hard drive, and is optimized for quick network access via the integrated broadband interface (1000 Mbit/s).

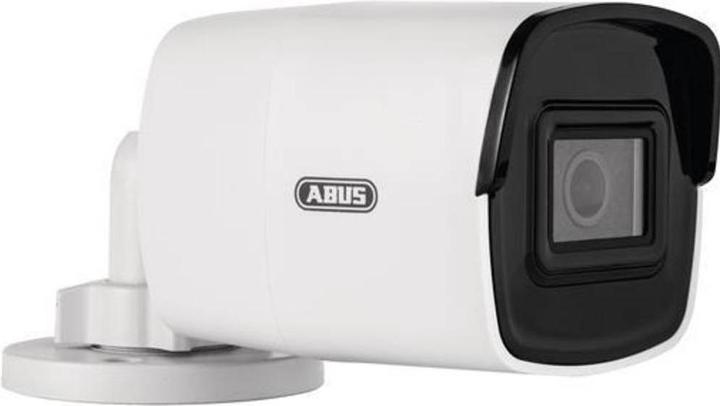

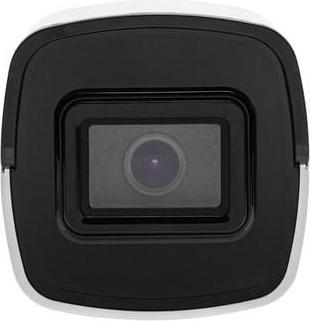

The outdoor cameras, equipped with IR night vision and an IP66 protection rating, are particularly suitable for continuous monitoring of entry areas both day and night. Up to 4 cameras can be integrated into the system.

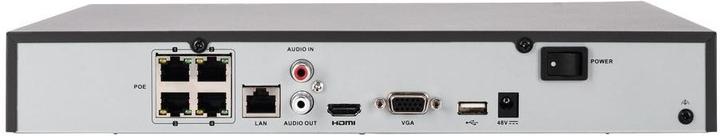

Easy and quick installation via PoE direct connection or router. The PoE-capable cameras can be connected directly to the PoE interfaces on the recorder. The video data is then transmitted to the recorder using the included network cables.
Network camera type | Outdoor surveillance camera |
Network interface | RJ45 port |
Power supply | PoE |
Type of memory | Memory card |
Advanced functions | Night vision function |
Item number | 21663657 |
Manufacturer | Abus |
Category | Network camera |
Manufacturer no. | TVVR36422T |
Release date | 10.8.2022 |
External links |
Colour | White |
Exact colour description | White |
Network camera type | Outdoor surveillance camera |
Camera resolution | 2 Mpx |
Max. picture resolution | 1920 x 1080 Pixels |
Viewing angle (H) | 111° |
Viewing angle (V) | 59° |
Viewing angle (D) | 111° |
Focal length | 2.8 mm |
Optical zoom | 1 x |
Image sensor type | CMOS |
Refresh rate | 30 FPS |
Advanced functions | Night vision function |
Video file formats | H.264, H.265, H.265+ |
Audio formats | H.264 |
Protection type (IP code) | IP67 |
Connection A | Cinch, HDMI, VGA |
Memory card type | microSD, microSDHC, microSDXC |
Type of memory | Memory card |
Network interface | RJ45 port |
Smart Home | Not compatible |
Installation place | Ceiling, Wall |
Application range | Professional use |
Power supply | PoE |
PoE Standard | 802.3af (PoE) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 18m network cable, 4-channel PoE recorder (TVVR36401), 48V dc, Installation material, Power supply |
Height | 69 mm |
Length | 70 mm |
Width | 170 mm |
Weight | 450 g |
Length | 51 cm |
Width | 27 cm |
Height | 30 cm |
Weight | 6.81 kg |
