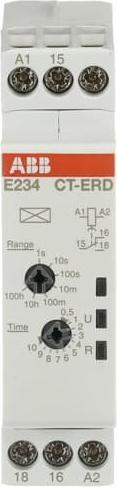

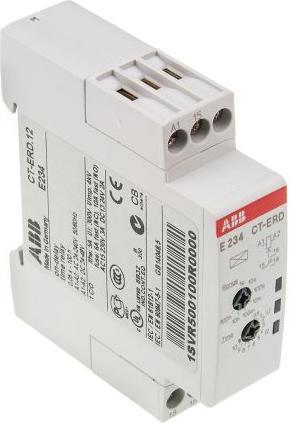

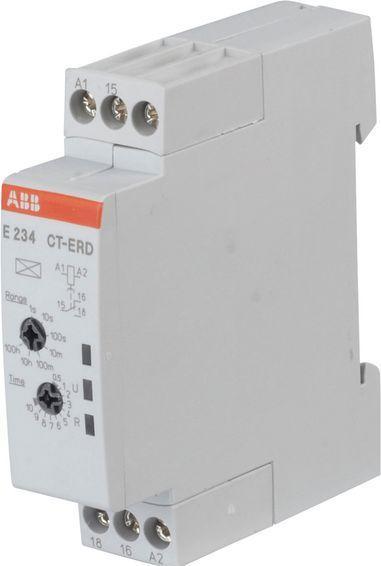

ABB Time relay

ABB Stotz S&J Time relay CT-ERD.12 Manufacturer: ABB Stotz S&J Designation: Time relay 24-240VAC Type: CT-ERD.12 Electrical connection type: screw connection Function response delayed: yes Function off-delayed: no Function switch-on wiping: no Function switch-off wiping: no Function star/delta: no Function pulse forming: no Function flashing with pause beginning, fixed time: no Function flashing starting with pulse, fixed time: no Function pulsing starting with pause, variable: no Function pulsing starting with pulse, variable: no With plug-in socket: no Remote control possible: no Suitable as remote control: no Can be plugged onto contactor: no Rated control supply voltage Us at AC 50 Hz: 24..240 V Rated control supply voltage Us at AC 60 Hz: 24..240 V Rated control supply voltage Us at DC: 24..48 V Voltage type for actuation: AC/DC Rated current: 6 A Time range: 0.05..360000 s Number of outputs, instantaneous, changeover: 1 Number of outputs, delayed, changeover: 1 Outputs, switchable delayed/indelayed: no With semiconductor output: no Suitable for DIN rail mounting: yes Suitable for front mounting: no Width: 17.5 mm Height: 70 mm Depth: 63 mmABB Stotz S&J Timer relay CT-ERD.12: more detailsThe timing relays of the CT-D series in MDRC design are located in a housing that is only 17.5 mm wide and fits into all common installation and distribution cabinets. The CT-D series is the link between industrial and installation design. For highest flexibility in use, 10 single as well as 2 multifunction devices with 7 time functions are available. The devices have 4 or 7 time ranges, adjustable from 0.05 seconds up to 100 hours. Their wide voltage input allows worldwide use. , EAN: 4013614350658.
