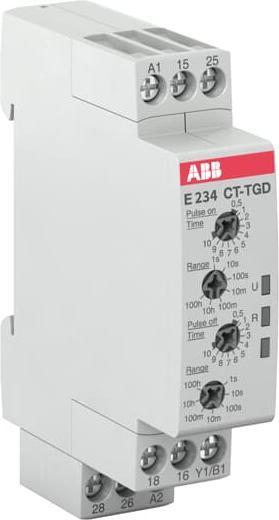

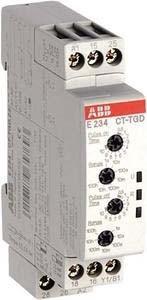

ABB Time relay asymmetrical 2/0,5s - 100H

Ratings
Delivered Tue, 11.8.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Supply voltage: 24 to 240 V AC, 24 to 48 V DC
Time range: 0.05 s to 100 h
Operating mode: Pulse generator
Mounting type: DIN rail, snap-on mounting
Number of time functions: Single
Number of contacts: 2
Time period: Hours, seconds
Power supply: External
Contact arrangement: 2-pole changeover switch
Current max: 6 A
Voltage min: 12 V
Voltage max: 250 V
Width: 22.5 mm

CE, UL. CT-D - Time relay, star-delta. Electronic timing relay Function: 711 - Star-delta. Wide voltage input. Contact rating 5 A at 250 V. Easy setting via potentiometer with absolute display. LEDs for status indication.

Key specifications

Relay type
Time relay
Input voltage
24 - 240 V
Electric current output
5000 mA
Output current type
AC/DC

General information

Item number
9721853
Manufacturer
ABB
Category
Relays
Manufacturer No.
1SVR500160R0100 - CT-TGD.22
Release date
24.9.2018

Relay properties

Relay type
Time relay
Input voltage
24 - 240 V
Electric current output
5000 mA
Output current type
AC/DC
Switching function
Changer
Number of openers
2x
Number of closers
2x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Bulgaria, Germany

Sustainability

Manufacturer commitment
RE100

Voluntary climate contribution

CO₂ emissions
0.99 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1 pc.

Product dimensions

Length
92 mm
Width
17.50 mm
Height
80 mm

Package dimensions

Length
10 cm
Width
7 cm
Height
3 cm
Weight
10 g

30-day right of return
24 Months Warranty (Bring-in)
