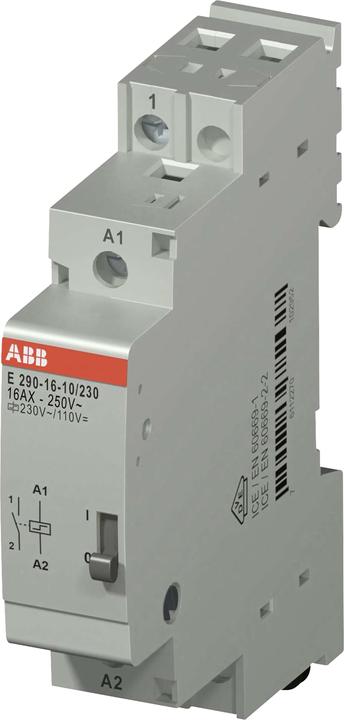

ABB Step switch, 1S, 16A, 230V

ABB Stotz S&J Pulse Switch E290-16-10/230

Manufacturer: ABB Stotz S&J
Designation: Pulse switch 230VAC/110VDC, 16A
Type: E290-16-10/230
Function: electronic for central control
Mounting type: other
Width in division units: 1
Installation depth: 68 mm
Number of contacts as normally open: 1
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Control voltage 2: 110 V
Control voltage type 2: DC
Frequency of control voltage 2: 50 Hz
Rated switching current: 16 A
Supply voltage: 207-253 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 3000 W
Max. fluorescent lamp load: 3000 VA
Max. fluorescent lamp load (duo circuit): 2500 VA
Max. fluorescent lamp load (parallel compensated): 3000 VA
Max. switching current (cos phi 0.6): 16 A
Suitable for manual operation: yes

Pulse switches are electromagnetically operated devices that enable simple, energy-saving, and safe lighting control. Typically, pulse switches are controlled via push buttons in situations where lighting needs to be operated from at least three different locations. Each control pulse sent to the coil-magnet system returns the device to its previous position and holds it mechanically until the next control pulse. In the event of a power failure, the last switching position is mechanically maintained. This technology significantly helps reduce electrical losses and the power consumption of the devices. Due to their very quiet switching sounds, pulse switches are also suitable for use in public buildings, hotels, and private residences. Depending on the type, the devices can be controlled with common control voltages and are designed for a rated current of 16 A or 32 A.
EAN: 7612270939602.
