ABB Motor contactor AC3 4kW 1S 230V

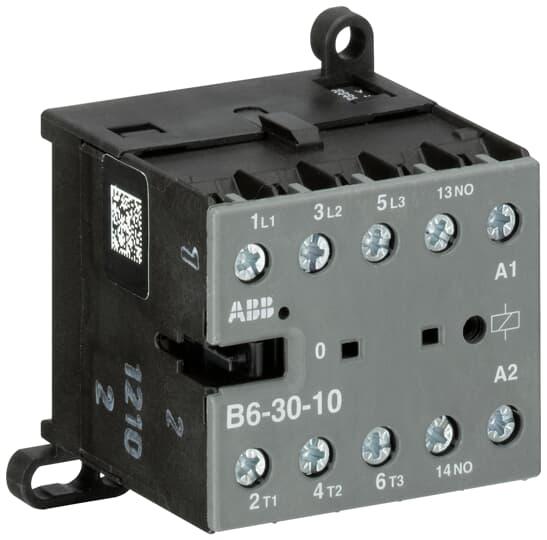

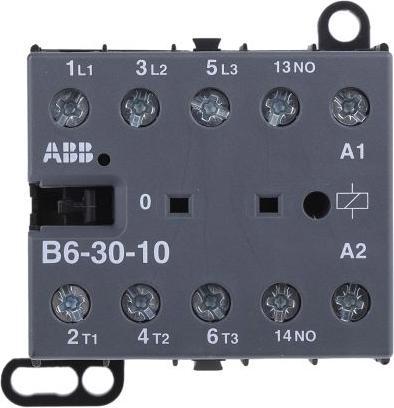

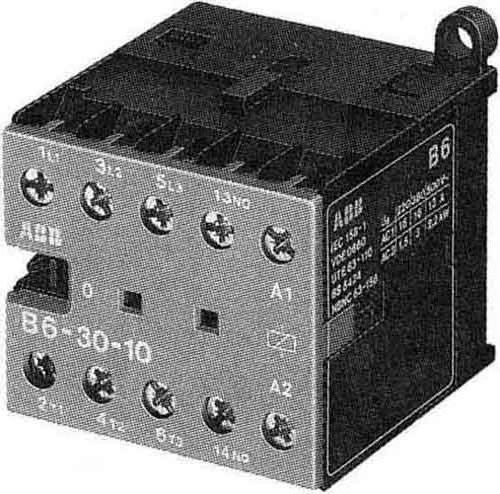

ABB Stotz S&J Contactor B6-30-10-80

Manufacturer: ABB Stotz S&J
Designation: Contactor 1S 220-240VAC
Type: B6-30-10-80
Rated control supply voltage Us at AC 50 Hz: 220..240 V
Rated control supply voltage Us at AC 60 Hz: 220..240 V
Rated control supply voltage Us at DC: 220..240 V
Voltage type for actuation: AC
Number of normally open contacts as main contacts: 3
Connection type for main circuit: Screw connection
Rated operational current Ie at AC-1, 400 V: 6 A
Rated operational current Ie at AC-3, 400 V: 9 A
Rated operational power at AC-3, 400 V: 4 kW
Rated operational power NEMA: 2.23709999 kW
Number of auxiliary contacts as normally open: 1
Suitable for rail mounting: no

ABB Stotz S&J Contactor B6-30-10-80: additional details
Mini contactors B/BC 6 and B/BC 7 for 4 and 5.5 kW AC-3 (400 V) represent a series with very compact dimensions and connection options in screw, solder pin, and flat plug technology. This, along with various contact and coil variants, offers a wide range of applications even in constrained spaces. With their AC or DC control, they switch power circuits with motors, lightly inductive, or non-inductive loads. Mountable accessories include extinguishing elements and 2-pole auxiliary switches that can be attached laterally or from the front.
