ABB Interface relay

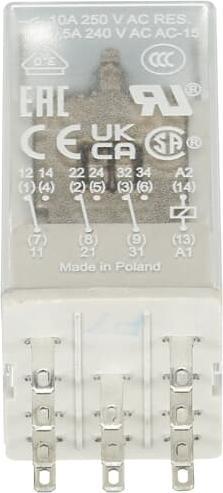

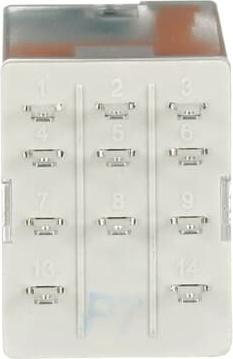

ABB Stotz S&J interface relay CR-M024DC3

Manufacturer: ABB Stotz S&J
Designation: Interface relay
Type: CR-M024DC3
Electrical connection type: Blade terminal
With detachable terminals: No
Rated current: 10 A
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Actuator, polarity: Polarised
Actuator switching behaviour: Monostable
Number of contacts as change-over: 3
With positively driven contacts: No
Type of switching contact: Single contact
Complete unit with base: No
With LED display: No
Material of contact coating: Other
Material of contact: Other
Protection class (IP): IP40
Width: 21.2 mm
Height: 35.6 mm
Depth: 27.5 mm

As an interface, interface relays connect the electronic control level, for example, PLC, with the level of the sensors/actuators. They take over various functions: Switching of DC or AC loads with different ohmic, inductive, as well as capacitive components, switching in the voltage range from a few mV to 250 V, switching in the current range from a few mA to 12 A, amplification of weak control signals, potential separation of control and load circuits, as well as signal multiplication. The CR-M series has 13 different coil voltages with 2-4 change-over contacts. A built-in test button for manual operation and interlocking of the output contacts, as well as relay variants with or without built-in LED can be selected. Two base variants are offered: Standard socket and logical socket. Pluggable function modules such as reverse polarity protection, free-wheeling diode, RC elements, or overvoltage protection extend the areas of application of the pluggable miniature relays.
