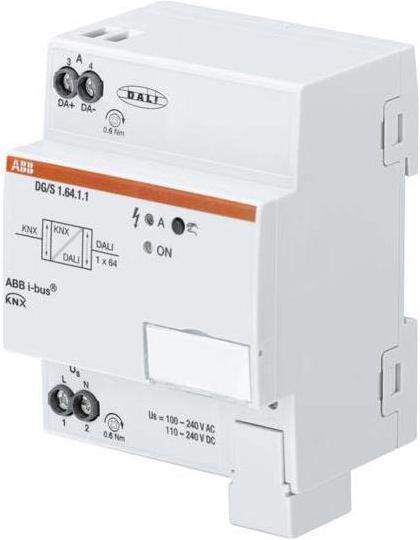

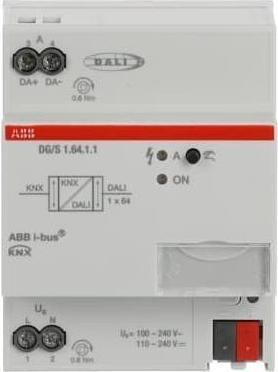

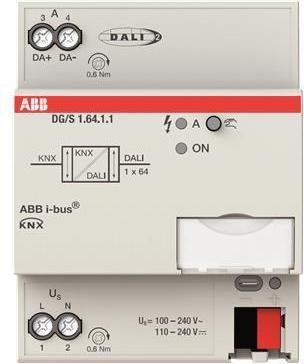

ABB DG/S1.64.1.1 DALI Gateway, Basic, 1-gang, REG

ABB Stotz S&J DALI-Gateway Basic DG/S1.64.1.1

Manufacturer: ABB Stotz S&J
Designation: DALI-Gateway Basic 1f
Type: DG/S1.64.1.1
Bus System KNX: yes
Bus System KNX-RF: no
Bus System RF Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional RF: no
Design: Interface lighting system/DALI
Mounting Type: REG
Width in Division Units: 4
Number of Channels: 1
Max. Number of Devices per Channel: 64
Disassembly Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 100–240 V
Voltage Type: AC/DC
Power Consumption: 2 W
Protocol: other
Provider Dependent: no
Visualization: no
Web Server: no
RF Interface: no
IR Interface: no
Protection Class (IP): IP20

The DALI-Gateway Basic enables the control of DALI participants via ABB i-bus®. It provides a DALI output for a maximum of 64 DALI participants. The DALI power supply is integrated. Control can be done per DALI participant (64), via groups (16), collectively in broadcast mode, or through scenes (16). Extensive error and fault messages are available. DALI emergency light converters (64) according to EN 62386-202 are supported. Function tests and duration tests can be triggered via KNX through the emergency light converter, and the results can be made available on KNX. Slave, stair light, lock, and forced guidance functions are integrated. The DALI telegram rate is adjustable. For individual readdressing of the DALI participants or group assignment, a separate diagnostic and commissioning tool, the ABB i-bus Tool, is available.
EAN: 4016779942669.
