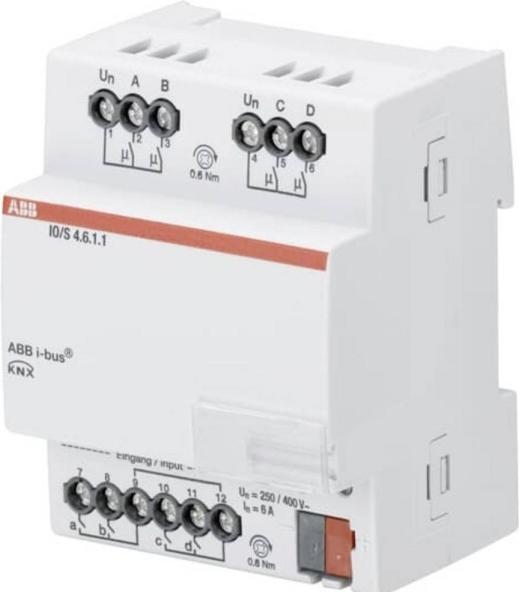

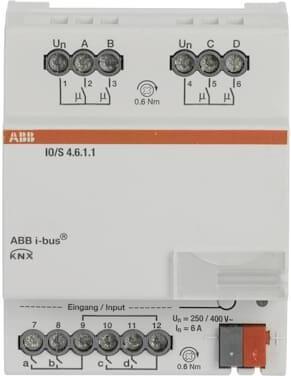

ABB 2CDG110168R0011 ABB-I/O Actuator Type IO/S4.6.1.1

ABB Stotz S&J Switching Actuator IO/S4.6.1.1

Manufacturer: ABB Stotz S&J
Designation: Switching Actuator 4E, 4A
Type: IO/S4.6.1.1
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Remote Control Possible: yes
Ethernet: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: no
Control LED: no
With LED Display: no
Local/Manual Operation: no
Number of Input Channels: 4
Number of Switching Inputs: 4
Number of Inputs: 4
Max. Switching Current: 6 A
Ohmic Switching Current: 6 A
Max. Switching Power: 1200 VA
Input Voltage: 230 V
Suitable for C-Load: no
Number of Output Channels: 4
Max. Number of Switching Outputs: 4
Output Power: 1200 VA
Switching Function: yes
Rated Current: 6 A
Rated Operating Voltage: 230 V
External Query Voltage Required: no
Different Phases Connectable: yes
Type of Current: AC
Protection Class (IP): IP20

The IO actuator opens up new possibilities for spaces that are to be used efficiently. This device has been developed for areas typically found in hotels, hospitals, assisted living, and student dormitories. It meets all the requirements for electrical installation in this application and offers the following functions in a compact form: switching lighting and controlling consumers. Through the communication of devices via the KNX bus, central control functions and emergency calls from the rooms to a central unit can also be realized.
EAN: 4016779881074.
