Best selling Wiring closet technologies from Eaton
On this page you’ll find a ranking of the best Wiring closet technologies from Eaton. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

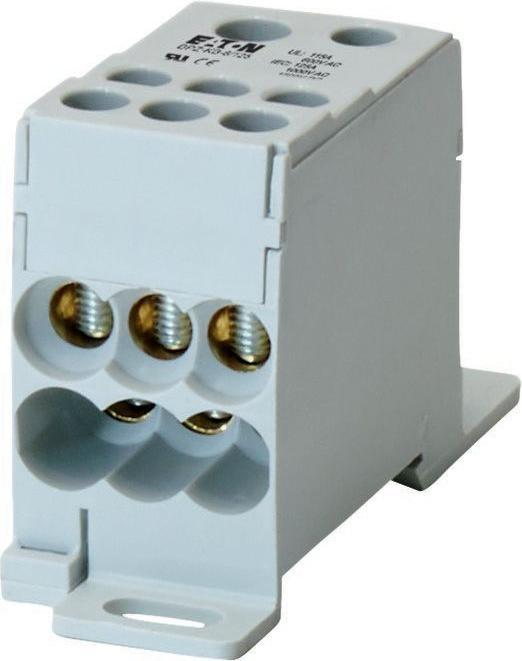

1. Eaton Terminal block, 1-pole, 125A, 6 102714
The Eaton terminal block is a high-quality distribution rail unit designed for use in distribution cabinets. With a rated current of 125A and a pole count of 1, this product offers a reliable solution for electrical distribution. The terminal block is equipped with six outputs, allowing for flexible and efficient wiring. Its compact design, measuring 27 mm in width, 47 mm in depth, and 74 mm in height, facilitates installation on a TS35 mm rail. Additionally, the terminal block meets the IP20 protection rating, making it suitable for use in dry indoor environments. Made in Germany, this product stands for quality and durability.
- Rated voltage of 1000 volts (V)
- Built-in protection class IP20
- Mounting on TS35 mm rail
- Made in Germany.

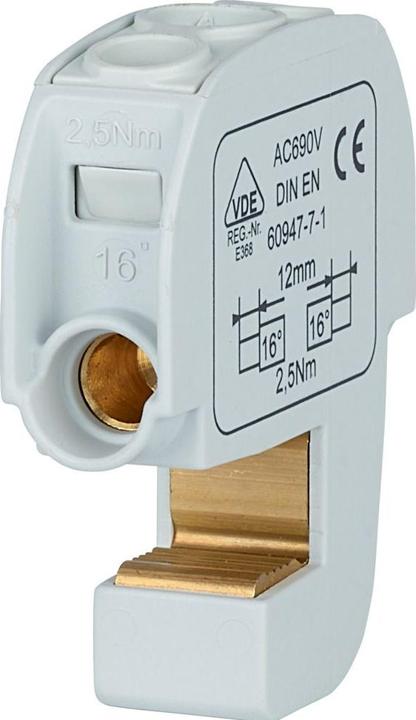

2. Eaton Connection terminal
Eaton AKI16/10 connection terminal
Manufacturer: Eaton
Designation: Connection terminal
Outgoing circuit: 2x16 qmm
Type: AKI16/10
Busbar thickness: 3 to 10 mm
Busbar width: 10 to 30 mm
Suitable for: Flat busbar
Width of terminal: 15.2 mm
Max. conductor cross-section: 16 mm²
Max. rated operational current (Ie): 114 A
Suitable for round conductor connection: Yes
Suitable for sector conductor connection: Yes
Suitable for strip conductor connection: No
The Eaton AKI16/10 terminal block is a busbar terminal block (finger-safe version) used as a PE conductor connection terminal for insulated PE busbars in the TT system.
EAN: 4015081785544.
3. Eaton ZSD-ZV-1100/APZ 191007 Complete meter cabinet 191007
The ZSD-ZV-1100/APZ 191007 meter complete cabinet from Eaton is a robust and functional solution for the installation of meter and distribution panels. This cabinet is specifically designed for indoor use and provides space for a meter panel as well as a distribution panel, making it ideal for the efficient organization of electrical systems. Made from high-quality steel sheet, the cabinet ensures high stability and durability. With an IP31 protection rating, it is also protected against dust and splashing water, which enhances the safety and reliability of the electrical installation. The meter complete cabinet is designed for three-point mounting and offers a thoughtful solution for the requirements of modern electrical installations.
- Made from robust steel sheet for high stability
- IP31 protection rating for additional protection against dust and splashing water
- Suitable for the installation of meter and distribution panels
- Designed for indoor use with three-point mounting.
4. Eaton Complete meter cabinet ZSD-ZV-1100/APZ/B
Complete meter cabinet in accordance with VDE AR-N 4101:2015-09, pre-wired and equipped with switching devices. The meter panel features a 3-point meter cross and a lower connection compartment with a 5-pole busbar system (12x5mm), including connection terminals (16mm²) to accommodate selective main circuit breakers up to 63 A. There is a functional compartment for additional EVU applications covered with a lockable dummy strip and an insulated RJ45 connection socket. The upper connection compartment includes a main line terminal (5x25mm²) that is finger-safe.
The distribution panel has 5 x 12 TE with 2x PEN rail in plug-in technology and is equipped with: 2 pcs. PXF-40/4/003-A, 12 pcs. PXL-B16/1, and 2x6 automatic circuit breakers connected to RCDs via a phase busbar (EVG-3PHAS/N/8MODUL/LS 1) and a 230V Schuko socket outlet. The installation of automatic circuit breaker rows is covered with dummy strips.
Wiring includes 10mm² between the main line terminal and RCD/PEN terminal. The connection between RCD and automatic circuit breaker row APZ is installed in the distribution panel below, including a protective conduit for data cable.
Protection class: IP31. Dimensions (mm): Height 1100, width 550, depth 225.

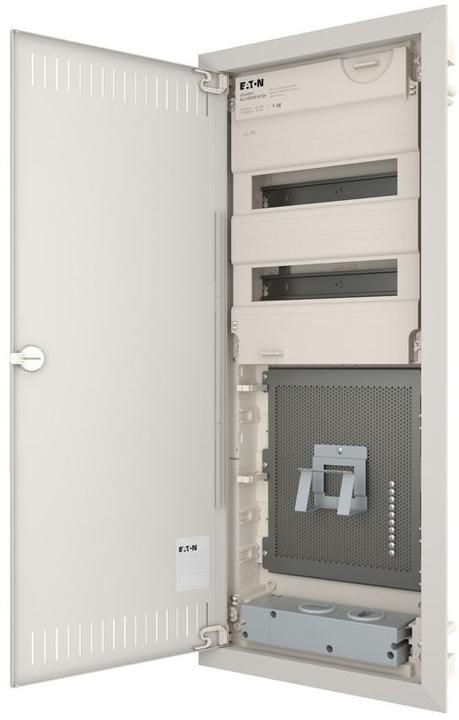

5. Eaton KLV-60HWP-HY24-F
The KLV-60HWP-HY24-F from Eaton is a hollow wall distribution board designed for indoor use. With a modern and flat door design, this distributor offers an appealing look and functionality. It is made of durable plastic and features a steel door that ensures high stability. The protection class II provides additional safety. The distributor is equipped with 12 divisions and 5 rows, allowing for flexible and efficient use. Additionally, it comes with extensive accessories included in the package, such as a device holder and neutral and protective conductor terminals. The laser-engraved front cover and labeling field in the wall box facilitate the identification and organization of electrical components. The KLV-60HWP-HY24-F is thus a practical solution for the installation and management of electrical systems.
- Protection class II for enhanced safety
- Sealable and laser-engraved front cover
- Robust door latch with optional safety lock
- Cable holder for tidy wiring
- Extensive accessories included in the package.
6. Eaton Zählerschrank
The Eaton meter cabinet is a high-quality solution for electrical distribution in residential and commercial applications. With a height of 1100 mm and a robust steel construction, this meter cabinet offers both stability and durability. It is suitable for surface mounting and has an IP31 protection rating, which protects it from dust and splashes. The cabinet comes pre-assembled and provides space for up to two panels, with one meter position pre-wired and another designated as a reserve. The integrated busbars are 5-pole, allowing for easy and secure wiring. Additionally, the meter cabinet is equipped with a micro-perforated mounting plate that enables flexible installation of components. The thoughtful arrangement of connection terminals and parking positions for RJ45 and power supply plugs ensures user-friendly handling and efficient use of available space.
- Pre-assembled version with pre-wired meter position
- Micro-perforated mounting plate for flexible installation
- 5-pole busbars for secure wiring
- Parking positions for RJ45 and power supply plugs
- Robust steel construction with IP31 protection rating.

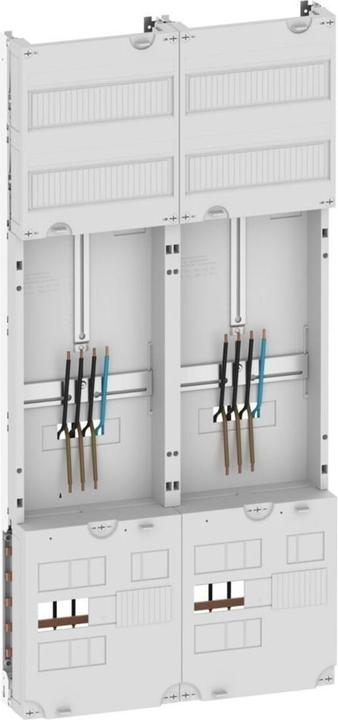

7. Eaton Counter field
Eaton Metering Panel ZSD-Z27A1332
Manufacturer: Eaton
Designation: Metering Panel
Type: ZSD-Z27A1332
Rated Current: 0 A
Design: 1-story
Number of Metering Positions: 2
Lower Connection Space: with 5-pole Busbar
Mounting Type: Surface-mounted
Material: Steel
Color: White
RAL Number: 9016
Number of Distribution Rows: 4
Number of Panels: 2
With Mounting Plate: Yes
Protection Class (IP): IP31
Width: 500 mm
Height: 1050 mm
Depth: 180 mm
Installation Width: 500 mm
Installation Height: 1050 mm
Installation Depth: 180 mm
Eaton Metering Panel ZSD-Z27A1332: additional details Meter Cabinet Complete Panel without Switchgear Equipment. Metering Position, Single. EAN: 4015082604110.

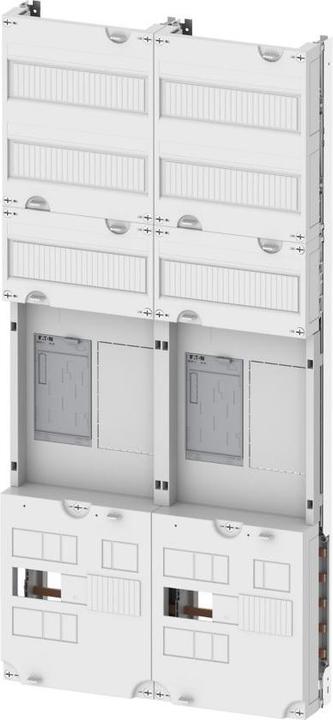

8. Eaton Counter field eHZ 1,050 mm
Counter field eHZ 1,050 mm
Number of fields: 2
Meter positions pre-wired: 2
Meter positions reserve: 2
Counter locations wiring: 16 mm²
Busbars: 5-pole
HLAK: 5-pole
Connection terminals.

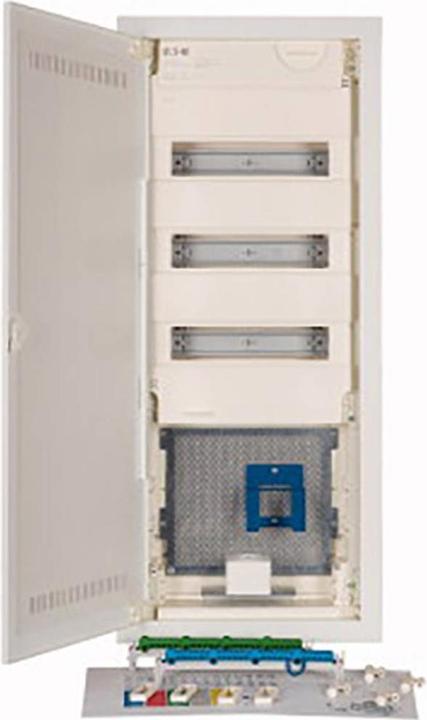

9. Eaton 302456 KLV-60HWP-W-HY36-F Small distribution box flush-mounted Number of divisions = 12 Number of
The Eaton 302456 KLV-60HWP-W-HY36-F small distribution board is a high-quality flush-mounted distribution cabinet accessory designed for indoor use. With a discreet and ultra-flat door design, this hybrid small distribution board offers an appealing look and functionality. It features a sturdy plastic housing and a steel door that ensures a high protection class II. The distribution board is sealable and laser-engraved according to IEC/EN 60670-24, allowing for easy identification of individual components. With a total of 12 divisions and 5 rows, it provides ample space for the installation of electrical components. The small distribution board is equipped with a cable holder that allows for clean and tidy wiring. Additionally, various accessories are included in the delivery to facilitate installation and use.
- Sealable and laser-engraved front cover according to IEC/EN 60670-24
- Sturdy door latch, optionally with safety lock
- Cable holder for tidy wiring
- Extensive accessories included in the delivery
- Two spare division units per row.
Wiring closet technology
CHF297.95
Eaton 302456 KLV-60HWP-W-HY36-F Small distribution box flush-mounted Number of divisions = 12 Number of

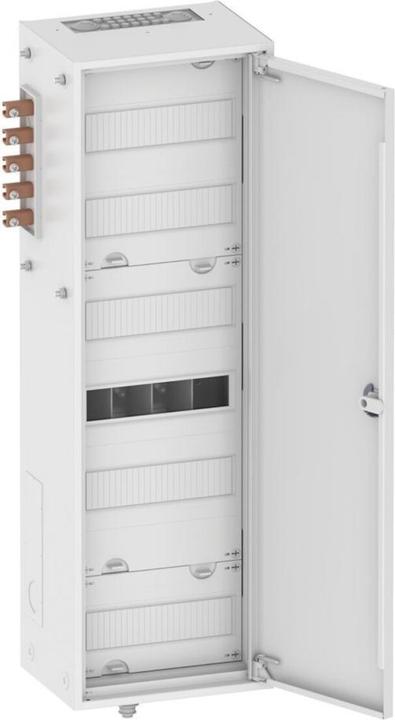

10. Eaton Feed-in cabinet
Eaton supply cabinet ZSD-ESPS/NH2
Manufacturer: Eaton
Designation: Supply cabinet for NH2
Type: ZSD-ESPS/NH2
Mounting next to cabinet: Yes
Mounting above cabinet: No
Mounting below cabinet: No
Number of poles: 5
Max. cross-section of the connection cable: 70 mm²
Max. cross-section of supply cable: 70 mm²
Connection type: Busbar
Protection class (IP): IP30
Height: 225 mm
Width: 300 mm
Depth: 950 mm
Further details: Supply cabinet height 950 mm with NH socket size 2, EAN: 4015082322304.
