Cable trunking
CHF903.39 CHF90.34/1m
TE Connectivity Raybraid, nickel plated copper 12.5 mm
Cable conduit, 1000 cm
Best selling Cable trunkings from TE Connectivity
This page always stays fresh and updates automatically.
1. TE Connectivity Raybraid, nickel plated copper 12.5 mm
Hose diameter: 12.5 mm
Material: nickel-plated copper alloy
Hose length: 10 m
Braided: yes
Stretchable: yes
Minimum cable diameter: 11 mm
Maximum cable diameter: 24 mm
Shielded: yes
Series: RayBraid
Coated Raybraid copper braid. A hose braid for the electrical shielding of cable bundles, protecting them from interference. Raybraid is delivered on a pipe bending form that facilitates installation and is more robust than braids delivered in a flattened form. The Ray-101 series features a tinned copper shielding, while the Ray-103 series has a nickel-plated copper shielding for use in harsh environments and at high temperatures. Features and benefits: provides EMC shielding for wires and cables, easily removable from the PVC bending form, minimum 93% and maximum 100% optical coverage, high usable stretch ratio (min. 2:1), hose available in tinned or nickel-plated copper, available in a variety of sizes to cover diameters from 2.5 to 40 mm.
2. TE Connectivity Raybraid 6mm RAY-101-6.0(100)
Hose diameter: 6 mm
Color: Silver
Material: Copper
Hose length: 100 m
Braided: Yes
Stretchable: Yes
Minimum cable diameter: 4.5 mm
Maximum cable diameter: 9.5 mm
Minimum operating temperature: -65 °C
Maximum operating temperature: 150 °C
Shielded: Yes
Series: RayBraid
Coated Raybraid copper braid. A hose braid for the electrical shielding of cable bundles, protecting them from interference. Raybraid is supplied on a tube bending form, which facilitates installation and is more robust than braids delivered in a flattened form. The Ray-101 series features tinned copper shielding, while the Ray-103 series has nickel-plated copper shielding for use in harsh environments and at high temperatures. Features and benefits: Provides EMC shielding for wires and cables; can be easily removed from the PVC bending form; minimum 93%, maximum 100% optical coverage; high usable stretch ratio (min. 2:1); hose available in tinned copper or nickel-plated copper; available in a variety of sizes to cover diameters from 2.5 to 40 mm.
Cable trunking
CHF2570.01 CHF25.70/1m
TE Connectivity Raybraid 6mm RAY-101-6.0(100)
Cable conduit, 10000 cm
3. TE Connectivity Raybraid, nickel plated copper 10mm
Hose diameter: 10 mm
Material: Nickel-plated copper alloy
Hose length: 10 m
Braided: Yes
Stretchable: Yes
Minimum cable diameter: 8 mm
Maximum cable diameter: 22 mm
Shielded: Yes
Standards: WSD 1922 (performance standard)
Coated Raybraid copper braid. A hose braid for the electrical shielding of cable bundles, protecting them from interference. Raybraid is delivered on a pipe bending form, which facilitates installation and is more robust than braids delivered in a flattened form. The Ray-101 series features tinned copper shielding, while the Ray-103 series has nickel-plated copper shielding for use in harsh environments and at high temperatures. Features and benefits: Provides EMC shielding for wires and cables; Easily removable from PVC bending form; Minimum 93%, maximum 100% optical coverage; High usable stretch ratio (min. 2:1); Hose available in tinned copper or nickel-plated copper; Available in a variety of sizes to cover diameters from 2.5 to 40 mm.
4. TE Connectivity Cable screening braid,7.5mm former dia
Hose diameter: 7.5 mm
Material: Copper
Hose length: 10 m
Braided: Yes
Stretchable: Yes
Minimum cable diameter: 7 mm
Maximum cable diameter: 14 mm
Shielded: Yes
Series: RayBraid
Coated Raybraid copper braid. A hose braid for the electrical shielding of cable bundles, protecting them from interference. Raybraid is delivered on a tube bending form, which facilitates installation and is more robust than braids delivered in a flattened form. The Ray-101 series features tinned copper shielding, while the Ray-103 series has nickel-plated copper shielding for use in harsh environments and at high temperatures. Features and benefits: Provides EMC shielding for wires and cables; easily removable from PVC bending form; minimum 93%, maximum 100% optical coverage; high usable stretch ratio (min. 2:1); hose available in tinned copper or nickel-plated copper; available in a variety of sizes to cover diameters from 2.5 to 40 mm.
Cable trunking
CHF118.08 CHF11.81/1m
TE Connectivity Cable screening braid,7.5mm former dia
Cable conduit, 1000 cm
5. TE Connectivity Black Polyolefin Edge Protection, 1.2m

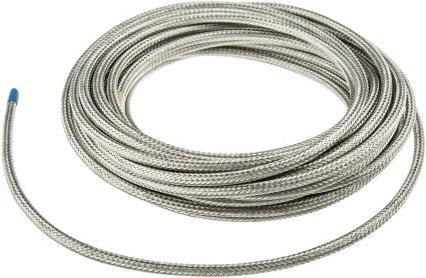

6. TE Connectivity Cable screening braid,4mm former dia
Hose diameter: 4 mm
Material: Copper
Hose length: 10 m
Braided: Yes
Stretchable: Yes
Minimum cable diameter: 3.5 mm
Maximum cable diameter: 7.5 mm
Shielded: Yes
Series: RayBraid
Coated Raybraid copper braid. A hose braid for the electrical shielding of cable bundles, protecting them from interference. Raybraid is delivered on a tube bending form, which facilitates installation and is more robust than braids delivered in a flattened form. The Ray-101 series features tinned copper shielding, while the Ray-103 series has nickel-plated copper shielding for use in harsh environments and high temperatures. Features and benefits: Provides EMC shielding for wires and cables; easily removable from PVC bending form; minimum 93%, maximum 100% optical coverage; high usable stretch ratio (min. 2:1); available in tinned copper or nickel-plated copper; offered in a variety of sizes to cover diameters from 2.5 to 40 mm.
Cable trunking
CHF108.54 CHF10.85/1m
TE Connectivity Cable screening braid,4mm former dia
Cable conduit, 1000 cm
7. TE Connectivity RaySpool flame retardant dispensing kit
Quantity: 6
Tube diameter: 2.4 mm, 3.2 mm, 4.8 mm, 6.4 mm, 12.7 mm, 25.4 mm
Color: Black
Operating temperature max: +135°C
Adhesive coated: No
Behavior in case of fire: Flame retardant
Shrink ratio: 2:1
RaySpool heat shrink tubing kit provides a convenient dispensing system for heat shrink tubing. This kit contains a selection of 6 black heat shrink tubing in a variety of common sizes on a mounting rack.
Features and benefits:
- Easy to store
- Easy to dispense
- Well suited for repairs
- Single wall or adhesive coated tubing
- Variety of sizes
- RoHS compliant
Product application information:
Applications include electrical insulation, strain relief, cable bundling, and environmental protection.
Cable trunking
CHF183.42 CHF531.66/1m
TE Connectivity RaySpool flame retardant dispensing kit
Cable conduit, 34.50 cm
8. TE Connectivity LSTT lowshrink refill,3.2/1.6mm
Set Type: Refill
Quantity: 1
Tube Length: 10 m
Material: Polyolefin
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +105 °C
Adhesive Coated: No
Shrink Ratio: 2:1
Refill assortment 2:1 LSTT, low shrink temperature. The RaySpool heat shrink tubes provide a convenient dispensing system for heat shrink tubing. The LSTT series heat shrink tubes are highly flexible and feature a low shrink temperature, allowing for quicker shape recovery and use near heat-sensitive materials. They are not flame retardant but meet automotive standards for flame spread. Features and benefits: easy to store, easy to dose, well-suited for repairs, a variety of sizes, RoHS compliant. Shrink ratio: 2:1. Operating temperature range: -40 °C to +105 °C. Product application information: Applications include insulation of electrical connections, covering heat-sensitive devices, cosmetic coatings, and mechanical protection.
Cable trunking
CHF24.87 CHF2.49/1m
TE Connectivity LSTT lowshrink refill,3.2/1.6mm
Cable conduit, 1000 cm
9. TE Connectivity RaySpool(R) heatshrink dispensing rack
Type: Frame
Number of shelves: 1
Material: Metal
Shrink tubing dispenser rack. This is a holder for your shrink tubes. It is a metal shelf with a compartment to store your tubes together, making it easy for you to measure the size of the tubes you need.
Cable trunking
CHF74.88 CHF191.02/1m
TE Connectivity RaySpool(R) heatshrink dispensing rack
Duct, 39.20 cm
10. TE Connectivity Low shrink temperature heatshrink kit
Quantity: 127
Hose length: 0.035 m, 0.07 m, 0.1 m
Material: Polyolefin
Color: Black
Operating temperature max: +125°C
Adhesive coated: No
Shrink ratio: 2:1
This tubing kit features a heat shrink ratio of 2:1. RaySpool heat shrink tubing kits provide a convenient dispensing system for heat shrink tubing. This kit contains a selection of black heat shrink tubing in a variety of popular sizes and comes in a convenient carrying case.
Features and benefits include:
- Easy to store
- Easy to dispense
- Well suited for repairs
- Single wall tubing
- Variety of sizes
- RoHS compliant
Product application information:
Applications include electrical insulation, strain relief, cable bundling, and environmental protection.
Cable trunking
CHF47.82 CHF478.20/1m
TE Connectivity Low shrink temperature heatshrink kit
Cable conduit, 10 cm
