Product details
The Theben thePrema P360-101 E UP WH presence detector is a highly advanced device designed for ceiling mounting. With an extended square detection area and a detection angle of 360 degrees, this presence detector provides comprehensive monitoring of spaces. It enables automatic control of lighting and heating, ventilation, and air conditioning (HVAC) systems based on the presence of individuals and ambient brightness. The flexible operating mode, which can switch between full and semi-automatic, allows for individual adaptation to various usage scenarios. The teach-in function and self-learning time delay optimize the device's efficiency, while the mixed light measurement allows for precise adjustment to lighting conditions. Additionally, the presence detector can be parameterized remotely, making installation and adjustment easier.
- Extended detection range with a reach of up to 64 meters
- Adjustable switch-off delay and sensitivity for individual customization
- Mixed light measurement switchable to spot or wide measurement
- Easy integration into smart home systems without a hub

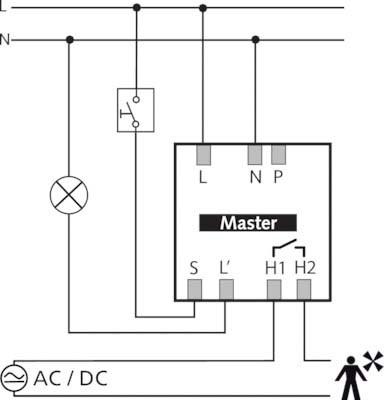

- Master/Master or Master/Slave configuration for flexible installation options.
type of sensor | PIR |
mounting style | Flush-mounted |
Motion sensor type | Presence sensor |
Exact colour description | RAL 9010 |
coverage angles | 360° |
Range | 64 m |
Documents | |
Item number | 17941530 |
Manufacturer | Theben |
Category | Motion sensors |
Manufacturer no. | 2070105 |
Release date | 16.12.2021 |
Colour | White |
Exact colour description | RAL 9010 |
Material group | Plastic |
Material | Plastic |
Motion sensor type | Presence sensor |
type of sensor | PIR |
coverage angles | 360° |
Range | 64 m |
Protection type (IP code) | IP40 |
mounting style | Flush-mounted |
Power supply | Electrical connection |
Output voltage | 230 V |
Smart Home | Compatible |
Requires Smart Home Hub | No |
Control type | Remote control |
Country of origin | Hungary |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 |
Length | 11 cm |
Width | 11 cm |
Height | 8.20 cm |
