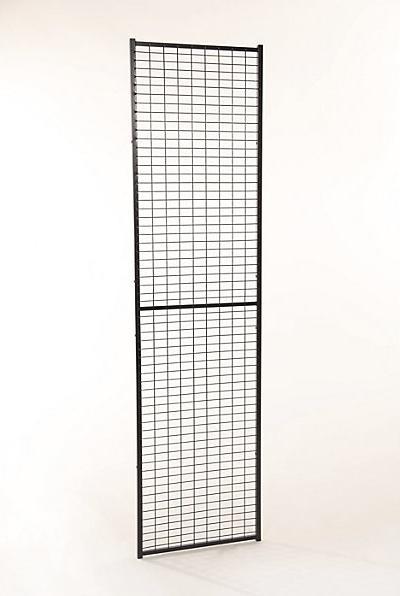

Axelent Machine guard X-GUARD LITE, wall element

Machine protection fence X-GUARD LITE, wall element, height 2200 mm, width 400 mm. The protective fence system is designed for machines, plants, storage, and logistics, providing a safety distance of 200 mm from the hazard source. It complies with the Machinery Directive 2006/42/EC. The required mesh size is 30 x 50 mm to prevent reaching through. It features a high-quality powder coating and allows for quick and easy assembly. Flexible expansion is possible at any time.

The wall elements are powder-coated in Graphite Black RAL 9011, with welded wire mesh on a sturdy rectangular tube frame. The vertical tube measures 19 x 19 mm, the horizontal tube measures 15 x 15 mm, and the mesh size is 30 x 50 mm, with a wire thickness of 3.0/2.5 mm. There is a ground clearance of 100 mm. Custom designs according to customer requirements are available upon request.
