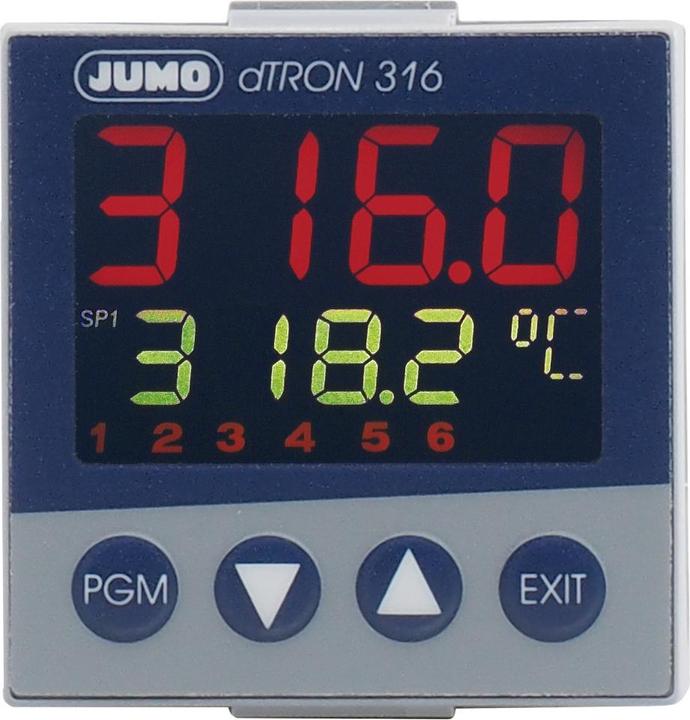

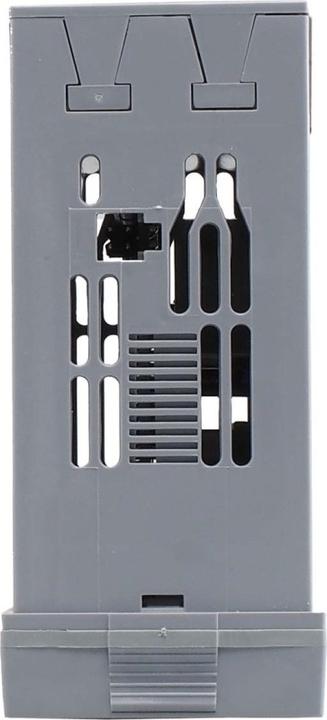

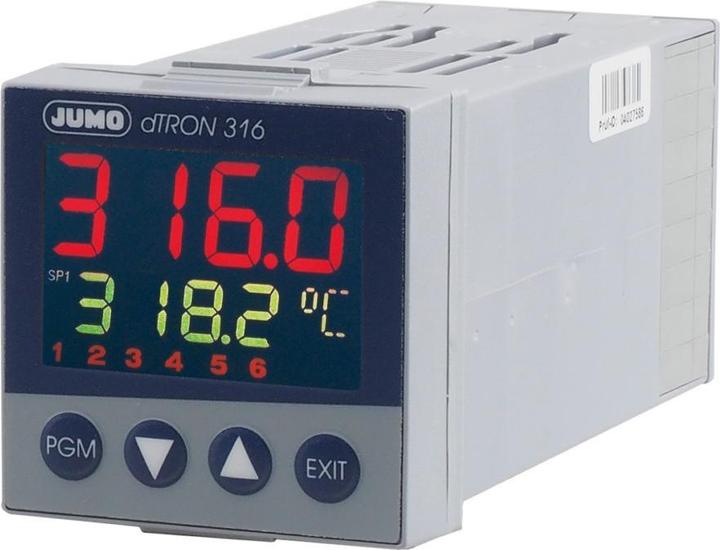

Jumo 703041/181-000-23/00 Compact controller with programme function, (48x 703041181000230

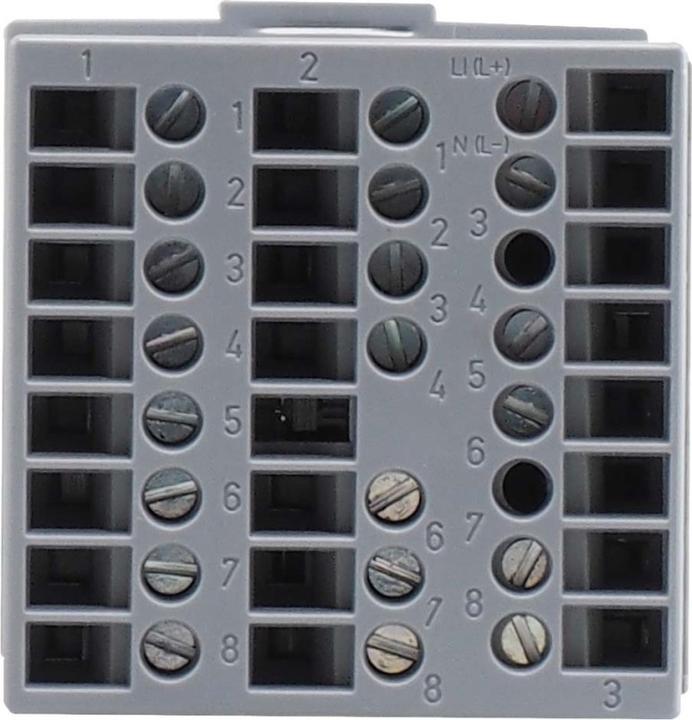

The PID controller for panel mounting features a universal input, relay outputs (normally open), binary outputs, and a power supply for two-wire transmitters. The power supply range is AC 110 to 240 V, 10-15%, 48 to 63 Hz. As a temperature controller TR according to DIN EN 14 597, the device can be used in heat-generating systems to regulate and control the temperature of liquid and gaseous media. The high-contrast, multi-color LCD display shows the actual value, setpoint, and user guidance, consisting of two four-digit 7-segment displays. Four buttons allow for easy operation. The compact controller can be configured as a two-point, three-point, three-point step controller, or continuous controller. Linearizations for common sensors are stored, and a custom linearization table can be programmed. A setup program is available for convenient configuration via a PC. The electrical connection is made at the back via screw terminals. The controller has approvals according to cULus and GOST.
