Best Bauer & Böcker products in the Magnets category
On this page you'll find a ranking of the best Bauer & Böcker products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

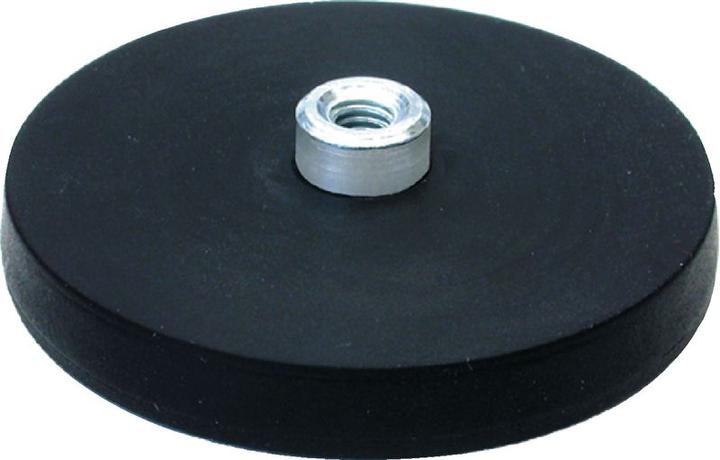

1. Bauer & Böcker Flat gripper magnet with internal thread
Bauer & Böcker flat gripper magnet with internal thread, 31 M5
Rubber-coated magnetic system in black with internal thread. Material: Neodymium iron boron (NdFeB), maximum operating temperature 60°C. These magnets are particularly suitable for sensitive surfaces. The special rubber coating prevents scratches or discoloration on the surface. The shifting forces due to the rubber lining are also higher.
2. Bauer & Böcker U-magnet
The U-magnet from Bauer & Böcker is a powerful bridge-shaped magnet known for its high holding force. With a robust housing made of AlNiCo 500 and a striking red coating, this magnet is not only functional but also visually appealing. It features a through-hole for easy attachment. The U-magnet is versatile and ideal for lifting, positioning, holding, and aligning objects. Thanks to its high temperature resistance, it can be used in demanding environments where other magnets might fail. With a maximum operating temperature of 450°C for the magnet and 200°C for the coating, it is suitable for various applications requiring high temperatures.
- Made from high-quality AlNiCo 500 for strong holding power
- Maximum operating temperature of 450°C for the magnet
- Through-hole for easy attachment
- Versatile for lifting, positioning, and aligning.
3. Bauer & Böcker Flat gripper magnet
Rubber-coated magnetic system in black with external thread. Material: neodymium-iron-boron (NdFeB), maximum operating temperature 60°C. These magnets are particularly suitable for sensitive surfaces. The special rubber coating prevents scratches or discolouration on the surface. The displacement forces are also higher due to the rubber coating.

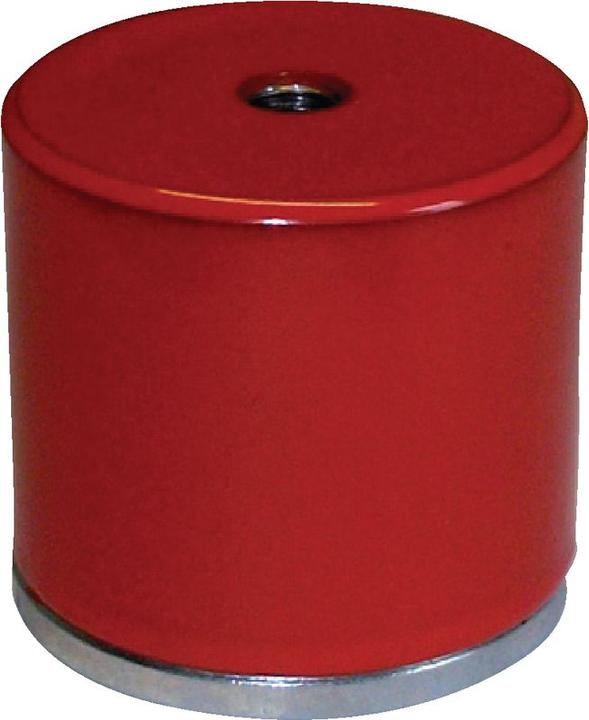

4. Bauer & Böcker Pot magnet
The pot magnet from Bauer & Böcker is a powerful magnet made from high-quality AlNiCo 500. With a diameter of 35 mm and a height of 30 mm, this magnet offers reliable holding power for various applications. It is ideal for use in fixtures for holding, clamping, and mounting objects. The red coating not only provides an appealing look but also protects the magnet from environmental influences. The pot magnet is shielded and features a threaded counterbore for easy installation. With a maximum operating temperature of 450°C for the magnet and 200°C for the coating, it is suitable for demanding applications. This magnet is a versatile solution for industrial and craft projects.
- Made from AlNiCo 500 for high magnetic strength
- Maximum operating temperature of 450°C
- Shielded with a threaded counterbore for easy installation
- Ideal for holding, clamping, and mounting applications.
5. Bauer & Böcker Neodymium pot magnet
Bauer & Böcker pot magnet neodymium (NdFeB), 32 h6
Magnetic rod gripper in smooth finish with fit tolerance h6. Material: neodymium (NdFeB). Shielded with a brass jacket, maximum operating temperature 80°C. Used particularly in tool and mould making and mechanical engineering.
Dimension A: the magnet can be trimmed by this length without losing holding force.
6. Bauer & Böcker Flat top magnet
Bauer & Böcker flat top magnet, 63
Magnetic flat grip with through-hole. Material: hard ferrite, shielded, surface galvanized. Recommended operating temperature: up to 100°C; maximum operating temperature: 200°C.
Ø 16 - 40 mm bore with countersink 90° for countersunk head screws.
Ø 50 - 80 mm with cylindrical bore for socket head and round head screws.
Magnetic flat grip with stainless steel housing for operating temperatures up to 220°C upon request.
7. Bauer & Böcker Flat gripper magnet with external thread
BAUER&BÖCKER Flat gripper magnet with external thread, 66 M8x15
Rubber-coated magnetic system, black, with external thread. Material: Neodymium iron boron (NdFeB) max. operating temperature 60°C. These magnets are particularly suitable for sensitive surfaces. The special rubber coating does not cause scratches or discolouration on the surface. The shifting forces due to the rubber lining are also higher.
8. Bauer & Böcker Cylindrical bar magnet
Bauer & Böcker cylindrical bar magnet made of Alnico, ground, measuring 8 x 25 mm.
Material: AlNiCo, ground. Maximum operating temperature: 200°C.
Additional dimensions, rectangular magnets, as well as cylindrical magnets with a bore hole, are available on request.
The adhesion force is calculated analytically and is therefore only to be understood as an approximation. The achievable accuracy is +/-20%. Diameter tolerance is +0/-0.2 and length tolerance is +/-0.2.
9. Bauer & Böcker Slip-proof magnetic flat grip
The non-slip magnetic flat gripper from Bauer & Böcker is an innovative tool designed for a variety of applications in industry and craftsmanship. With a diameter of 43 mm and a special rubber coating, this magnet offers excellent holding power, making it particularly suitable for use on coated steel sheets. The neodymium-iron-boron magnetic system ensures high energy efficiency and reliable performance, while the rubber surface minimizes the risk of scratches on sensitive surfaces. The magnet is designed for temperatures up to 60°C, providing versatile usability in different environments. A version with a threaded pin is available upon request, further enhancing the product's adaptability.
- Rubber coating to prevent scratches on surfaces
- High-energy neodymium-iron-boron magnetic system for strong holding power
- Maximum operating temperature of 60°C for versatile applications.
10. Bauer & Böcker Button magnet
The button magnet from Bauer & Böcker is a versatile tool that is ideal for various applications, including positioning, holding, and laboratory purposes. With a diameter of 13 millimeters and a height of 9.7 millimeters, this magnet clip offers a compact and effective solution for your needs. Made from high-quality AlNiCo 500, the magnet features high temperature resistance, reaching up to 450°C for the magnet and 200°C for the coating. The special design with a split holding surface and through hole allows for easy attachment and handling, making it a practical aid in various environments.
- Made from AlNiCo 500 for high temperature resistance
- Split holding surface and through hole for easy attachment
- Ideal for positioning and laboratory applications.
