Best selling Satellite accessories from Kathrein
On this page you'll find a ranking of the best Kathrein products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Kathrein EXR 58/ECO
Multiswitch for distributing four satellite levels and terrestrial signals to eight connections. Only one downlink is required for each receiver (two downlinks for twin receivers). Independent horizontal/vertical and low/high selection from each receiver.
2. Kathrein UFOprolite headend
The UFOprolite headend from Kathrein is a state-of-the-art solution for processing and distributing satellite signals. It is specifically designed for installation in 19-inch racks and features a compact design with a height of only 1U. This headend allows for the reception of up to eight DVB-S/S2/S2X tuners via four SAT IF inputs and supports both DiSEqC 1.0 and IPTV signals. Equipped with a user-friendly web interface, it enables easy configuration and monitoring of signal distribution. The UFOprolite headend is ideal for use in professional applications where reliable signal processing and distribution are required.
- Supports up to 8 tuners for DVB-S/S2/S2X signals
- Integrated web interface for easy operation
- Compatible with DiSEqC 1.0 for flexible signal distribution
- Provides support for both IPTV SPTS and MPTS
- Includes 2 CA modules for additional access to pay-TV services.

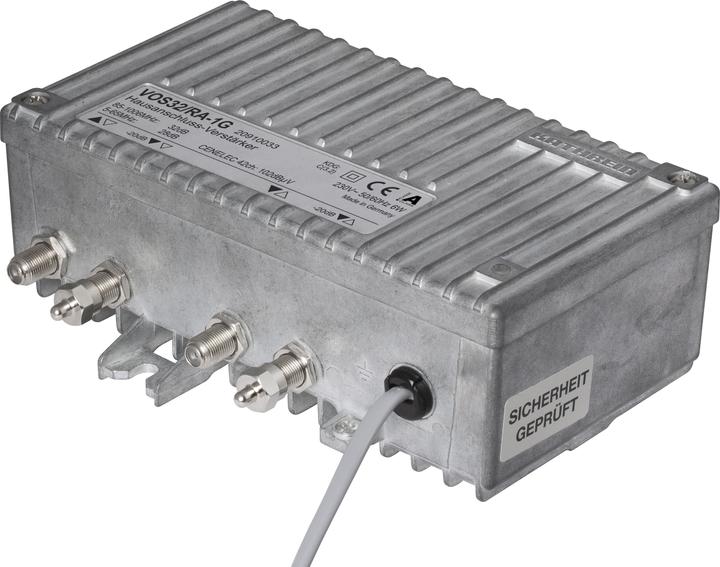

3. Kathrein booster
- House connection amplifiers for modern HFC networks up to 1 GHz
- Integrated high-efficiency switched-mode power supply unit
- Power management: unused amplifier stage switch-off for reduced power consumption
- Die-cast housing with F-type connectors
- Variable 6 dB interstage gain setting using on-board plug-in attenuators (delivery condition: higher gain)
- The maximum operational levels also apply for operation with interstage attenuation
- Interstage equaliser switchable with bridging plugs (6 dB pre-emphasis)
- Integrated return path 5-65 MHz active/passive, off (switchable with bridging plugs)
- Built-in variable attenuators (delivery condition return path: max. attenuation) and variable equaliser
- LED to indicate operational mode
- Test socket on output -20 dB (with directional coupler)
- Test socket on input -20 dB
- Test sockets are terminated with the EMK 03 in the delivery status
- Conform to: EN 60728-11, EN 50083-2 and EN 60065
- For indoor installation.
4. Kathrein KATH house connection amplifier
The KATH house connection amplifier from Kathrein is a powerful broadband amplifier specifically designed for use in cable TV systems. With a frequency range of 47 to 1,006 MHz and a gain of up to 40 dB, this amplifier ensures reliable signal transmission and amplification. It is suitable for both upstream and downstream paths, making it a flexible solution for various applications. The amplifier features a level controller that allows for gain adjustment from 0 to 20 dB, as well as a line equalizer that further optimizes signal quality. Its remote powering capability and the use of F-connectors make installation and integration into existing systems particularly easy. The KATH house connection amplifier is also Vodafone certified, highlighting its reliability and compatibility with common cable networks.
- Upstream capable with 30 dB gain in the upstream
- Inputs for broadband cable with a frequency range of 47-1,006 MHz
- Level controller for gain adjustment from 0 to 20 dB
- Line equalizer for optimizing signal quality
- Remote powering for easy installation and integration.

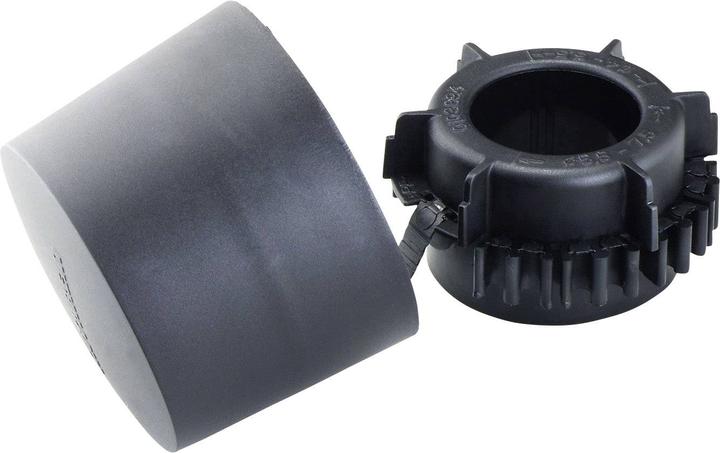

5. Kathrein ZTC 08 Mast cover cap
Short info: KATHREIN ZTC 08 - Mast cover cap - mast diameter 48 - 60 mm. Group: Accessories. Manufacturer: KATHREIN-Werke. Manufacturer Art. No.: 218219. Model: ZTC 08. EAN/UPC: 4021121401718. Product description: KATHREIN ZTC 08 - Mounting accessories for parabolic antenna. Packed quantity: 10 (specifications apply to one item). Product type: Mounting accessories for parabolic antenna. Weight: 0.1 kg. Detailed information: General packed quantity 10. Product type: Mounting accessories for parabolic antenna. Weight: 0.1 kg. Miscellaneous features: Mast diameter 48-60 mm.
6. Kathrein ZTB 60sw roof cover plate
KATHREIN ZTB 60sw - roof cover plate for mast diameter 38-60 mm in black.
Manufacturer: KATHREIN-Werke
Manufacturer Art. No.: 21410011
Model: ZTB 60sw
EAN/UPC: 4021121455735
Product description: KATHREIN ZTB 60ro - mounting accessories for parabolic antenna.
Packaged quantity: 1
Product type: Mounting accessories for parabolic antenna
Weight: 0.32 kg
Color: Black
Features: Diameter 38-60 mm.

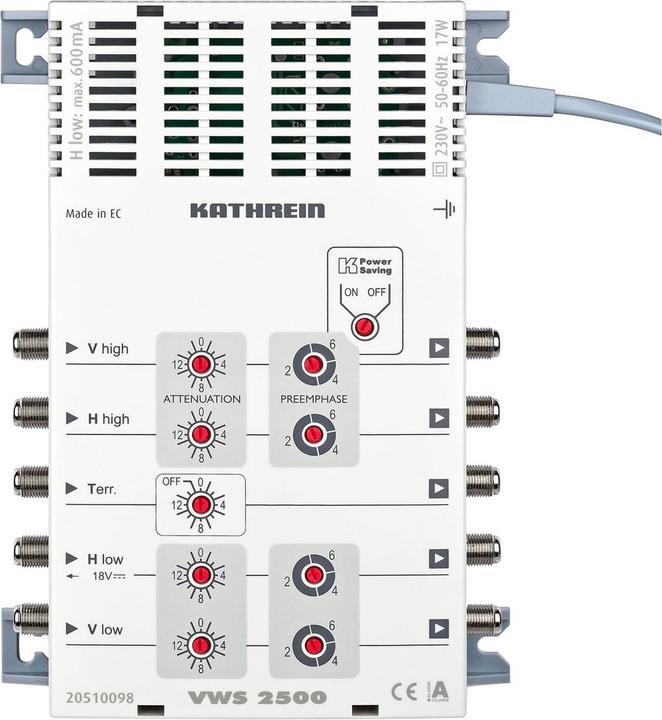

7. Kathrein SAT Multiswitch VWS 2500 Inputs (multiswitch): 5 (4 SAT/1 terrestrial)
Description: The VWS 2500 multiswitch features fixed pre-equalization in the terrestrial amplifier train and stepwise adjustable pre-equalization (2/4/6 dB) in each satellite amplifier train. It boasts low power consumption due to a highly efficient, short-circuit-proof switched-mode power supply. The VWS 2500 is ideal for optimum signal provision at the input of larger multiswitch cascades or as a cascadable distribution network amplifier to compensate for cable or feeder/distributor feed-through attenuation in larger distribution networks.
Features include:
- Stepwise adjustable attenuation controls (1-dB step) in each amplifier train for leveling different input levels
- Fixed pre-equalization in the terrestrial amplifier train
- Stepwise adjustable pre-equalization (2/4/6 dB) in each satellite amplifier train
- Low power consumption due to a highly efficient, short-circuit-proof switching power supply
- LNB remote feed possibility via the input horizontal low, with all other inputs being voltage-free (thus allowing operation with UAS 585).
Satellite accessories
CHF191.–
Kathrein SAT Multiswitch VWS 2500 Inputs (multiswitch): 5 (4 SAT/1 terrestrial)
Multi switch
8. Kathrein ZAS 41XS Roof Rafter Support 48/1300mm
The Kathrein ZAS 41XS rafter mount is a robust and reliable accessory for the installation of satellite dishes and antennas. Made from hot-dip galvanized steel, this mount offers high resistance to weather conditions and corrosion. With a typical mast length of 1300 mm and a maximum mast diameter of 4.8 cm, it is suitable for various applications. The rafter mount is specifically designed for rafter spacings of 390 to 520 mm and is compatible with a variety of antenna models, including the CAS 60, 80, 90 as well as the KEA 650, 750, 850, and 1000. Installation is straightforward, allowing for quick setup. The ZAS 41XS is an ideal choice for anyone seeking a stable and durable solution for antenna mounting.
- Made from hot-dip galvanized steel for increased corrosion resistance
- Suitable for rafter spacings of 390 to 520 mm
- Compatible with various antenna models, including CAS and KEA
- Easy and quick installation for efficient setup.
Satellite accessories
CHF149.–
Kathrein ZAS 41XS Roof Rafter Support 48/1300mm
Mirrors + antennas Mounting
9. Kathrein EMU 12 Disconnector F DC Blocker
Kathrein F-DC Block EMU 12 Manufacturer :Kathrein Designation :F-DC Block Type :EMU 12 Style :straight Type :male/female Connector type :F Impedance :75 Ohm Mounting type :other Kathrein F-DC Block EMU 12: more details F-DC block 5-2400 MHz, F male F female, for blocking DC-paths in SAT IF distribution systems, shielding greater than 90 dB, shielding class A , EAN: 4021121437342.
Satellite accessories
Quantity discount
CHF9.55 per piece for 2 units
Kathrein EMU 12 Disconnector F DC Blocker
Plugs and connectors

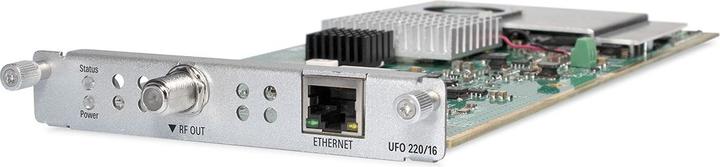

10. Kathrein UFOpro 16x output module
Kathrein UFO 220/16 UFOpro 16-fold.
