Best selling Relays from Eaton
On this page you’ll find a ranking of the best Relays from Eaton. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Eaton Motor protection relay 0,24A ZE-0,24 1S/1Ö 690VAC for small contactors IP20 ZE-0,24
The ZE-0.24 motor protection relay from Eaton is a compact and reliable device specifically designed for direct mounting on small contactors. With an ampere setting that can be adjusted using a convenient dial, it allows for precise adaptation to the specific requirements of the application. The relay offers phase failure sensitivity in accordance with IEC/EN 60947 and VDE 0660 standards, making it a safe choice for use in various electrical systems. Equipped with a auxiliary switch that includes both a normally closed and a normally open contact, the relay provides additional flexibility and functionality. Installation is straightforward as it mounts directly on the contactor, saving space. With an IP20 protection rating, the device is suitable for use in dry indoor environments.
- Direct mounting on small contactors for easy installation
- Ampere setting via dial for precise adjustment
- Includes auxiliary switch with 1 normally closed and 1 normally open contact
- Phase failure sensitivity according to IEC/EN 60947 and VDE 0660
- IP20 protection rating for use in dry indoor environments.
2. Eaton Small contactor 24V
The Eaton power contactor DILEM-01-G (24 V DC) is a high-performance device designed for use in various electrical applications. With a rated control supply voltage of 24 V DC, this miniature contactor is particularly suitable for motors and resistive loads. It offers reliable switching performance and is capable of controlling both non-inductive and slightly inductive loads. The contactor is equipped with three main contacts and allows for easy installation via screw terminals. The use of auxiliary contacts enhances the functionality and flexibility of the device. The DILEM-01-G is suitable for operation in various applications, including the control of squirrel-cage motors and resistance furnaces. With a compact design and robust construction, this power contactor is ideal for industrial and commercial applications.
- Suitable for motors of efficiency class IE3
- Operating power of up to 4 kW at AC-3
- Connection type via screw terminals for easy installation
- Supports various usage categories, including AC-1 and AC-3
- Integrated auxiliary switch for expanded control options.
3. Eaton Contactor 230V 4kW
Area: xStart
Series: DILM
Number of poles: 3
Coil voltage: 230 V AC
Rated contact current: 9 A
Rated contact voltage: 400 V AC
Contact number and position: 3-pole
Contact configuration: 3 normally open contacts
Number of auxiliary contacts: 1
Power: 4 kW
Connection type: Screw fastening
Width: 45 mm
Maximum operating temperature: +40 °C
DILM contactors, 3-phase. X Start is the latest generation in the field of contactors, overload protection, and relays from Moeller, based on the proven and tested DIL series. This generation of modular components benefits from technological advancements in motor switching and control, providing users with a range of additional advantages. Features and benefits: All contactors are modular and identically constructed. The series is extremely robust, suitable for all requirements, resistant to interference, and offers high reliability of the control circuit, even in combination with a PLC. The electronic power adjustment of the magnetic system in DC contactors allows for very small frame sizes, so that AC and DC units have identical dimensions. This now enables the direct arrangement of AC and DC contactors side by side. Three main normally open contacts in DC contactors from 12 A feature an electronic drive that makes coupling relays unnecessary. All DC contactors up to 150 A have an integrated suppression circuit. Connection boxes with double coupling surfaces ensure secure connections when wiring different cross-sections and reduce errors in wiring.
4. Eaton Contactor 25A 230V 1NC+1NO xpole
The Schütz 25A 230V 1Ö+1S xpole from Eaton is a reliable installation contactor designed for the control of heating, lighting, and ventilation systems. With an output current of 25 Amperes and an input voltage of 230 Volts, this product provides a robust solution for various electrical applications. The contactor features a screw terminal that allows for easy and secure installation. The use of high-quality materials and adherence to standards ensure a long lifespan and high reliability. This product is ideal for professionals who require efficient and safe control of electrical systems.
- Suitable for heating, lighting, and ventilation systems
- Input voltage of 230 Volts for versatile applications
- Output current of 25 Amperes for high performance requirements.
5. Eaton Installation contactor, 20A, 24V AC/DC, 2S Y7-135177
The Eaton installation relay is a reliable and versatile device designed for controlling heating, lighting, and ventilation systems. With an output current of 20 Amperes and an input voltage of 24 Volts, this product is ideal for various applications in building automation. The relay is suitable for both alternating current (AC) and direct current (DC), making it a flexible solution for different electrical systems. Manufactured in the Netherlands, the installation relay offers high quality and durability. Its compact design allows for easy integration into existing installations, while the specific technical features ensure reliable performance.
- Output current of 20 Amperes for high power requirements
- Suitable for both AC and DC applications
- Compact design for easy installation in various systems.
6. Eaton Overload relay-DILM7-12 contactor,9-12A
The ZB12-12 overload relay from Eaton is a reliable motor protection relay designed to protect electric motors in various applications. With a current rating of 12 A and a contact current carrying capacity of up to 150 A, it provides an effective solution to prevent overloads. The relay can be directly mounted on the contactor and features phase failure sensitivity in accordance with IEC/EN 60947 and VDE 0660 Part 102 standards. It is equipped with a test/reset button for manual and automatic operation, making it easy to use and maintain. The IP20 protection rating ensures that the relay can be used in dry indoor environments. The ZB12-12 is compatible with various contactor types, including DILM7, DILM9, and DILM12, offering versatile applications in industrial automation.
- Direct mounting on the contactor for easy installation
- Test/reset button for user-friendliness
- Free tripping to enhance safety
- Compatible with multiple contactor types for flexibility
- Certified according to IEC/EN 60947 and VDE 0660 for high standards.
7. Eaton Circuit breaker
Installation relay with manual operation, suitable for switching single-phase or three-phase loads up to 20A. Due to its universal applications in building technology and home installation, the following functions and controls can be realized: switching of lighting systems and electric heating, switching of ventilation and air conditioning systems, fans, switching of heat pumps, and switching of electrically controlled roller shutters and blinds, as well as incandescent and gas discharge lamps. The Z-R series of installation relays meets the requirements of EN/IEC 60947 and EN/IEC 1095. Manual operation is available for testing purposes, with switching contacts providing safe isolation AC1 according to EN 60947-4-1 (Z-R, Z-RK). There is an option for optical indication of operating status via LED, and a front-side switching position indication through a manual operation button. All terminals - coil and contacts - are equipped with terminal aids. No back-wiring of connection wires is possible, and main contacts with standard pin variation are adjustable. The materials used are flame-retardant and chlorine and halogen-free plastics, ensuring touch safety according to VBG4. Advantages include availability in three versions (Z-R, Z-RK, Z-RE), low switching noise, and hum-free operation. Easy connection is facilitated by generously sized terminals delivered in the open position, simple snap-on mounting for 35mm DIN rail, high flexibility through various contact configurations, and easy access for connecting the coil supply.
8. Eaton Time relay ETR4-70-A
Supply voltage: 24 to 240 V AC/DC
Time range: 0.05 s to 60 h
Mounting type: DIN rail
Number of time functions: Multifunction
Number of contacts: 2
Series: ETR4
Time unit: Hours, seconds
Power supply: External
Contact arrangement: 2-pole switch
Maximum current: 6 A
Connection type: Screw terminal
Minimum voltage: 12 VAC/VDC
Maximum voltage: 240 VAC/VDC
Length: 82.5 mm
ETR4 - Electronic time relay. Mono or multifunctional time ranges adjustable. Type ETR4-11/-51/-69 with 1 changeover contact. Type ETR4-70 with 2 changeover contacts (2 time contacts or 1 immediate/1 time contact) and connection for external potentiometer. Mounting on DIN rail. A screw adapter is available as an accessory.

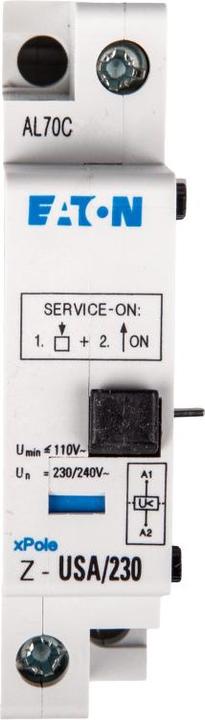

9. Eaton Undervoltage release, 230V, 248289
Eaton U-trip unit screwable Z-USA/230
Manufacturer: Eaton
Designation: U-trip unit screwable
Type: Z-USA/230
Device mounting: Universal
Additional device: Undervoltage release
Factory fitted: No
Width in units: 1
Number of contacts as NO contacts: 1
Number of contacts as NC contacts: 1
Rated switching current: 0 A
Rated voltage: 230 V
Voltage type for actuation: AC
With auto-test for residual current function: No
Suitable for max. number of poles of the main contact unit: No
Number of poles of the main contact unit (total): 1
Suitable for max. 0 A
Eaton screw-on undervoltage release Z-USA/230:
Further details: Screw-on undervoltage release, blue/white voltage indicator, service button for switching on without voltage for test purposes, can be used with PLS, CLS, Z-A40, and Z-MS.
10. Eaton Electric GmbH NA contactor 160A with K95 NAS160-CI-1-K95
Eaton NA Contactor NAS160-CI-1-K95
Manufacturer: Eaton
Designation: NA Contactor 160A with K95
Type: NAS160-CI-1-K95
Accessory/Spare Part Type: other
Accessory: no
Spare Part: no
Eaton NA Contactor NAS160-CI-1-K95: additional details
The Eaton network and system protection complies with the requirements of VDE-AR-N 4105, which is mandatory for all generation systems connected to the low-voltage grid. The ready-to-connect solution impresses with its compact dimensions and minimal self-consumption. It is type-tested and suitable for all network forms.
EAN: 4015081646876.
