WISI Coaxial cable

110 dB, Antenna cable
Ratings
Delivered between Wed, 30.7. and Thu, 14.8.
More than 10 pieces in stock at supplier
free shipping

Product details

Wisi coaxial cable MK 76 A 0100 R100

Manufacturer: Wisi
Designation: Coaxial cable
Class: A++, WS, 115dB
Type: MK 76 A 0100 R100
Inner conductor diameter: 0.8 mm
Inner conductor material: Copper, bare
Inner conductor class Kl.1: Solid
Outer conductor diameter: 3.65 mm
Outer conductor material: Copper, tinned
Outer conductor form: Foil + braiding
Dielectric: Other
Number of shield layers: 3
Sheath material: Polyvinyl chloride (PVC)
Sheath material specification: Polyethylene (PE)
Sheath colour: White
Fire behaviour class acc. to EN 13501-6: Eca
Smoke emission class acc. to EN 13501-6: None
Dripping behaviour class acc. to EN 13501-6: None
Acid emission class acc. to EN 13501-6: None
Halogen-free acc. to EN 60754-1/2: No
UV-resistant: No
Characteristic impedance: 75 Ohm
Outer diameter approx.: 5 mm
Min. permissible bending radius, flexible insert with forced guidance: 25 mm
Min. permissible bending radius, flexible insert/free motion: 25 mm
Min. permissible bending radius, stationary use/fixed installation: 25 mm
Suitable for laying in the ground: No
Weight: 27.92 kg/km

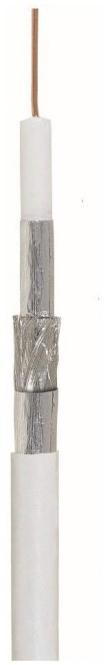

Wisi coaxial cable MK 76 A 0100 R100 is a coaxial cable designed for domestic installations. The small dimensions make it ideal for laying in empty conduits. The three-fold shielding ensures trouble-free transmission in distribution systems for cable television and satellite supply. The MK76A complies with Euroclass Eca.

Key specifications

Length
100 m
Item number
21349398

General information

Manufacturer
WISI
Category
Antenna + Satellite cables
Manufacturer no.
75402
Release date
29.6.2022

Colour

Cable colour
White

Material

Material
Polyethylene (PE), Polyvinyl chloride (PVC)

Coaxial cable properties

Coaxial cable type
Antenna cable
shielding dimension
110 dB
Number of shieldings
3
Length
100 m
Inner conductor Material
Copper, Tinned copper

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
100 pcs.

Package dimensions

Length
22.40 cm
Width
22.10 cm
Height
13.50 cm
Weight
2.78 kg
