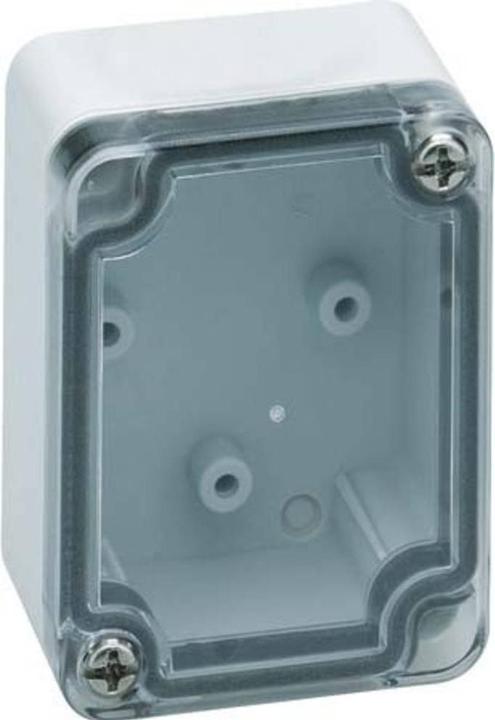

Spelsberg Empty housing TK PC 75-4-to

Spelsberg empty housing TK PC 75-4-to
Manufacturer: Spelsberg
Designation: Empty housing
Type: TK PC 75-4-to
Width: 65 mm
Height: 50 mm
Depth: 35 mm
Material: Plastic
Material grade: Other
Finish: Untreated
Colour: Grey
RAL number: 7035
Free-standing: No
Floor-standing wall model: No
Suitable for wall mounting: Yes
Corner model: No
Intermediate mounting: No
Can be coupled: No
With mounting plate: No
Mounting plate depth-adjustable: No
Suitable for wall mounting: No
Pole mounting: Yes
Suitable for metric mounting: No
Suitable for outdoor installation: Yes
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK08
Protection class (IP): IP66
Protection class (NEMA): 4X
Heat loss capacity (Delta T 20 K) according to IEC/TR 60890: 1.2 W

Spelsberg empty enclosure TK PC 75-4-to: further details
Empty enclosure with IP66 protection, polycarbonate, certified according to DLG (ammonia resistance), UL (UL 508 & CSA C22.2 No. 14-13, UL 50 & CSA 22.2 No. 94.1-7 & UL 50E & CSA C22.2 No. 94.2-7), DNV (class: ships & offshore installations), Ui=690V AC, Ui=1000V DC, internal fixing points, for installations in industrial environments and protected outdoor areas, box: polycarbonate, grey, cover: polycarbonate, transparent, smooth side panels.
Dimensions: 65 x 50 x 35 mm
EAN: 4013902901371.
