Product details

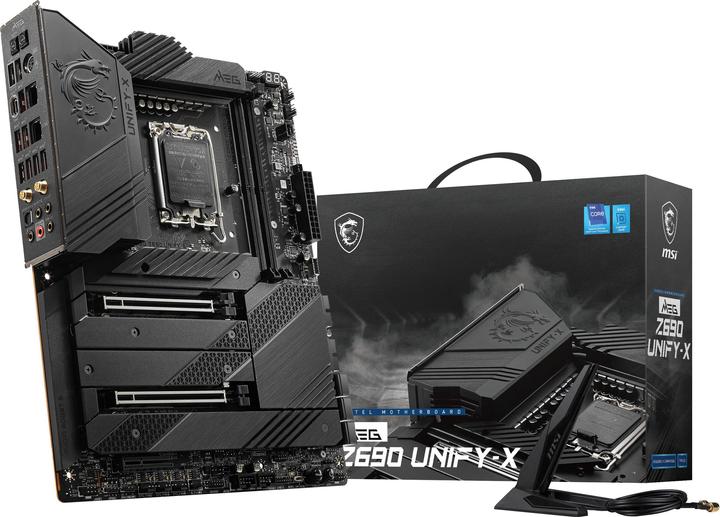

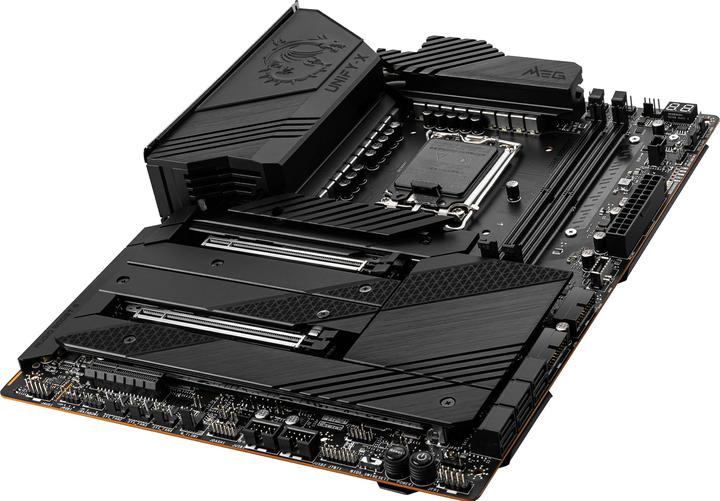

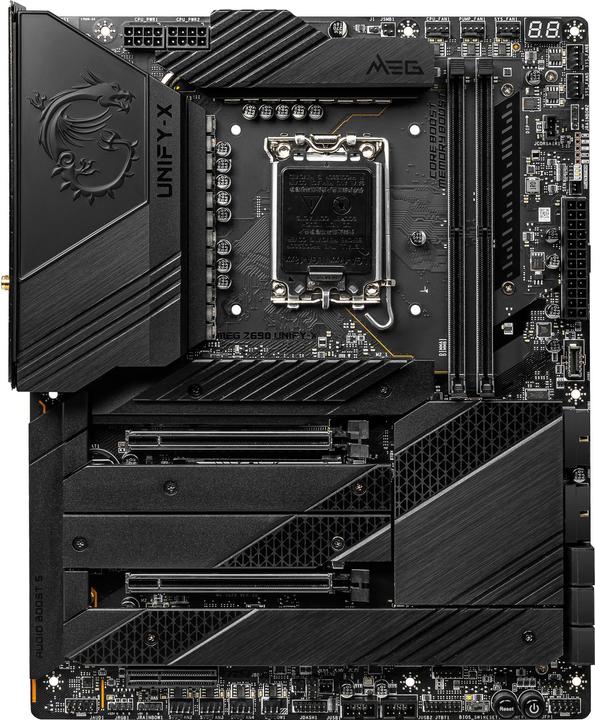

The MSI MEG Z690 Unify-X is a high-end motherboard designed for Intel's 12th generation processors (Alder Lake-S). It features the LGA 1700 socket and supports DDR5 memory with speeds of up to 5200 MHz (OC). The motherboard is aimed at enthusiasts and gamers, offering numerous features for optimal performance. It includes an enhanced VRM design with 20+2 phases, ensuring stable power delivery even during overclocking. Additionally, the motherboard is equipped with an advanced cooling system that consists of a large heatsink, thermal pad, and heat pipes.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Clear CMOS Button |
Item number | 17253027 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D28-002R |
Release date | 4.11.2021 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR5) |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR5-6800 |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

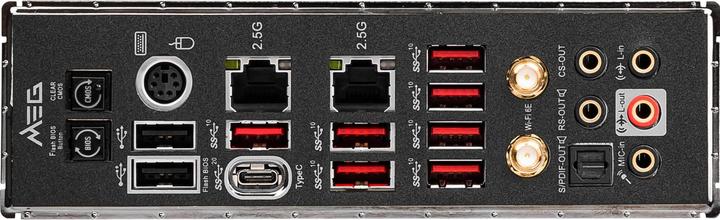

Video connections | 1 x USB-C |
Multi-GPU technology | AMD CrossFire |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x), PCI Express x4 (1x) |
Power connectors | 24-pin ATX |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4 x Serial ATA cable |
Length | 305 mm |
Width | 305 mm |
Height | 288 mm |
Weight | 1000 g |
Length | 36.60 cm |
Width | 34.10 cm |
Height | 10.90 cm |
Weight | 3.37 kg |
Specifications may include unverified machine translations.
