SCANALOGIC-2 EDU KIT (Educational kit) is a fun and educational kit
allowing you to build a high performance logic analyzer at home! It's
an even lower cost equivalent to the SCANALOGIC-2 Logic Analyzer whose
performances have been proved over the last 3 years.

SCANALOGIC-2 EDU KIT is a 20 MHz, 256K Samples, 4 Channels logic
analyzer that relies on a computer software (ScanaStudio) to visualise
and analyze the captured signals.

Whether your a student on a budget or a hobbyist who enjoy creativity,
this logic analyzer will suit you perfectly.

Features:

* 20 Million samples per seconds
* 4 channels that can be configured as input or output
* 256K samples depth per channel, that is a total of 1M bit of
embedded memory.
* Compatible with the ScanaStudio logic analyzer software
* Protocol decoding (I2C, SPI, UART, 1-Wire, etc)
* Digital signals generation (PWM, FM, UART packets..)
* Record and Playback feature

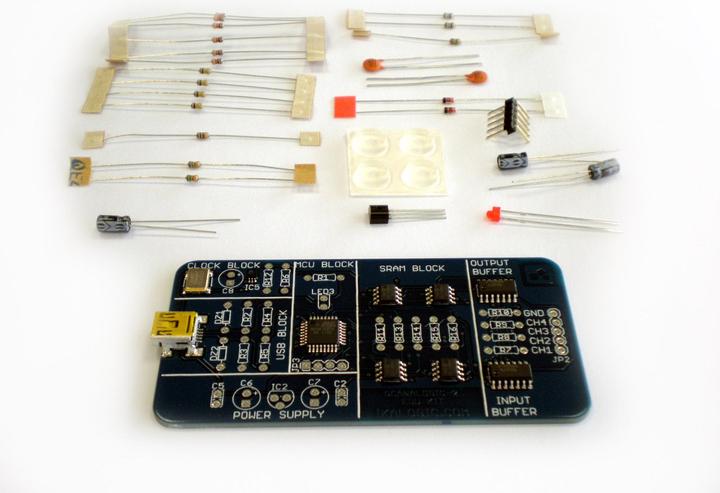

Scanalogic-2 EDU KIT comes as a PCB with pre-soldered components like
the micro controller, the quartz oscillator and the SRAMs. (basically
all the difficult to solder, SMT components).

The rest of the components are to be soldered by the user (Resistors,
capacitors, diodes, etc).

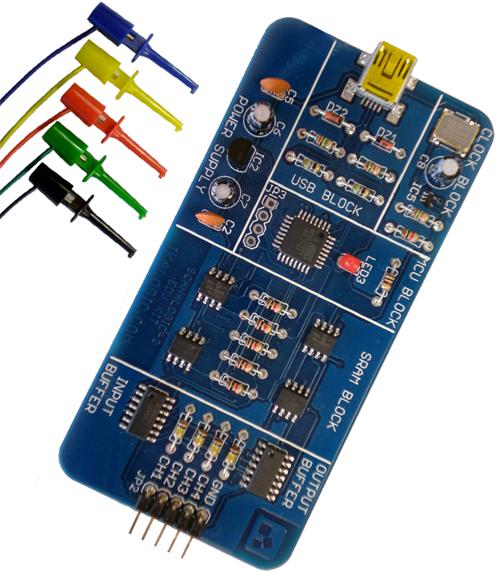

The KIT also includes the gripper probes, with its user friendly color
coding.

An instructions sheet is provided to help you place each component at
the right place.

In order to solder your logic analyzer kit, you will need a soldering
iron and and some solder wire and very basic soldering skills.
