Dold Voltage relay

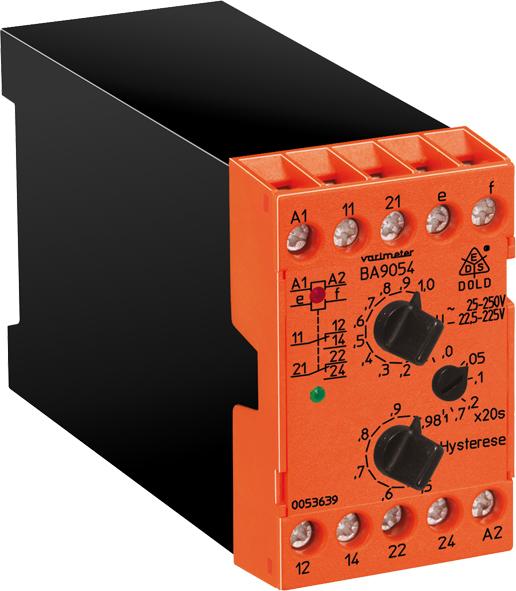

Dold&Söhne voltage relay BA9054/010 AC0,5-5V Manufacturer :Dold&Söhne Designation :Voltage relay UH AC230V Type :BA9054/010 AC0,5-5V Electrical connection type :Screw connection With detachable terminals :no 1-phase undervoltage possible :yes 3-phase undervoltage possible :no 1-phase overvoltage possible :yes 3-phase overvoltage possible :no 1-phase window possible :no 3-phase window possible :no Contains function DC voltage undervoltage :no Contains function DC voltage overvoltage :no Contains function DC voltage window :no Voltage measuring range 1 :0.5..5 V Voltage type of measuring range :AC Rated control supply voltage Us at AC 50 Hz :230 V Voltage type for actuation :AC Response value voltage :0.5...5 V Number of contacts as change-over contacts :2 Width :45 mm Height :75 mm Depth :120 mm Dold&Söhne voltage relays BA9054/010 AC0,5-5V: further details The relays measure the arithmetic mean value of the rectified measuring voltage, whereby the devices are calibrated for sinusoidal AC voltagesin rms value. The response value as well as the release value can be adjusted via the hysteresis. They can also be used as undervoltage relays. The dependence of the hysteresis on the setting value must be taken into account, EAN: 4030641533236.
